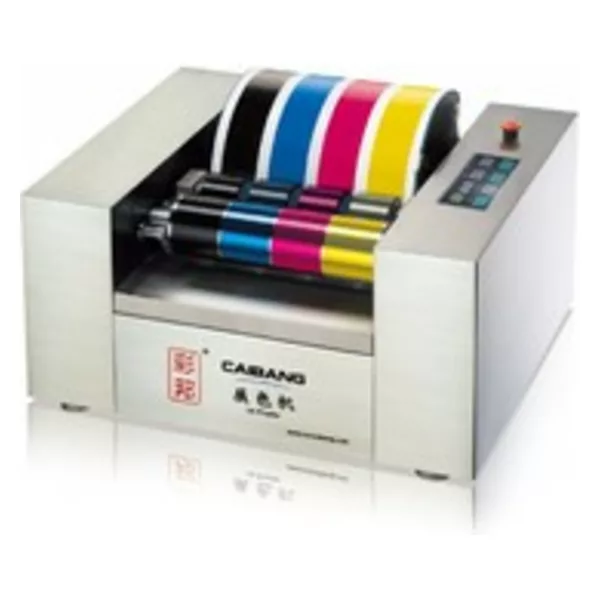

Main technical parameters about item CB225A ink proofer:
Power: AC220V, 50Hz Input Voltage:250W
Effective area of ink color bar: 40X200mm(4 bars) 60X200mm(3 bars) 100X200mm(2 bars),
optional.
Substrate size: 270X250mm
Machine dimension: 525x430x280mm
Inks mixing speed: Official setting is 400RPM, 550RPM&700RPM.This speed is available
controled byfrequency variation from 0 RPM to 1000RPM
Printing speed: Official setting is 10RPM,15RPM&20RPM. This speed is available controled
by frequencyvariation from 0RPM to 30RPM
Inks mixing time:15 to 99 seconds, adjustable.
Printing pressure: -1 to +1mm, subject to manual adjustment.
Ink uniforming pressure: Manual adjustment.
Optional rubber rollers to: UV inks and offset inks.
ø67×229MM(Max printing size 229×210mm)
Net weight:About 75kg
Applicable printing ink: Offset inks, letterpress ink, UV inks and UV flexo printing inks.
