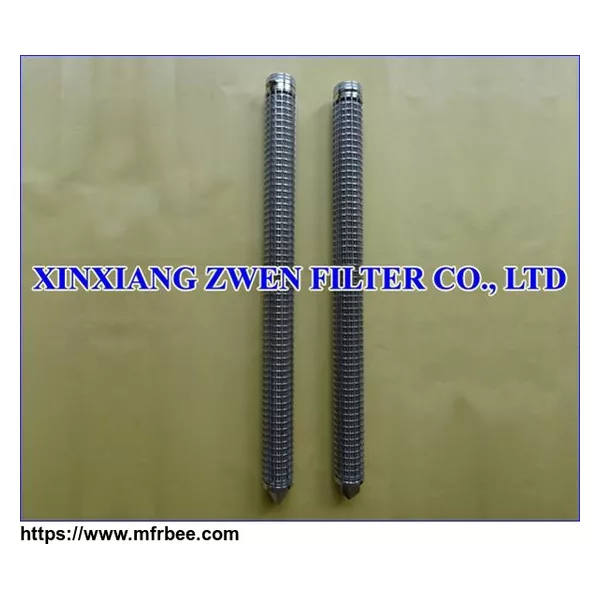

Pleated Candle Filter Feature
1. Pleated Candle Filter has large filter area
2. Pleated Candle Filter is surface filtration and depth filtration
3. Pleated Candle Filter has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt
4. Pleated Candle Filter has a very high filter efficiency because of differential fiber layers density gradients of zwen sintered fiber felt
5. Pleated Candle Filter will not shed in filtration process
6. High porosity
7. High filter rating accuracy
8. High temperature resistance
9. High corrosion resistance
10. Pressure rise rate is slow in filtration process
11. Pressure loss is low in filtration process
12. High flow rate at low differential pressure
13. Washable and Cleanable
14. Reusable
15. Long service life
Pleated Candle Filter Technical Parameter
Raw Material: SS 316L, SS 304
Filter Rating: 1-300 Microns
Filter Efficiency: > 99.99 %
Operation Temperature:≤816℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 150 mm, 300 mm, 400 mm or others
Length: 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector:
1. DOE
2. 220
3. 222
4. 226
5. Thread (NPT,BSP,G,M,R)
6. Flange
7. Special customization
Application
Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
