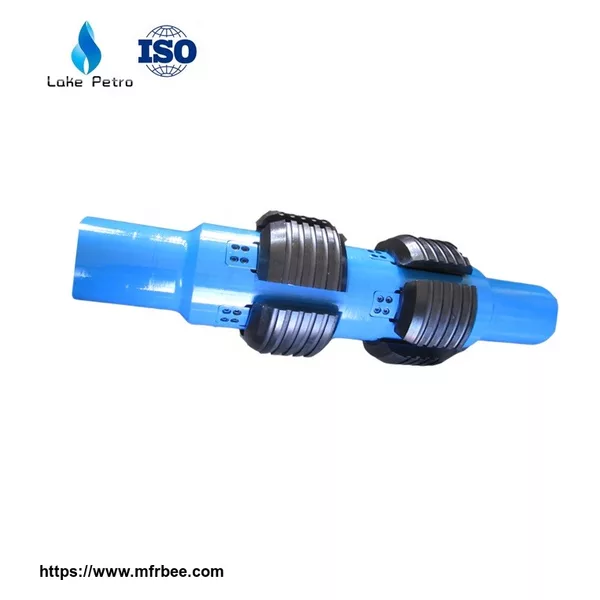

Casing scraper is ideal for the removal of mud, cement, bullets, rust, scale, paraffin, perforation burrs and other obstructions from the inside walls of casing. Maintaining a clean casing I.D. is important when operating drilling, fishing, or wire line tools. Likewise, packers and similar tools must have a clean surface to grip. Foreign materials on casing walls will frequently cause these tools to become difficult to operation.
The casing scraper is manufactured from a solid piece of heat treated steel. The scraper blades fit into machined recesses and are securely held by a dovetail keeper and scraper. The scraper blades feature left hand helical grooves and are hard faced for maximum service. There are sufficient blades in the body to completely scrape the casing surface without rotating the tool.
Standard connections on the casing scraper are API reg. Box and Pin. This allows the scraper to be installed in the drilling string between the bit and the bit sub. The bit is run below the scraper to serve as a guide and prevent plugging the circulation hole through the scraper.
3. Features:
(1) . Full circle blades contact 6000 surface at once.
(2) . Short, compact, easy to assemble and disassemble.
(3) . Longer guide taper on blades for passing through joints without hanging.
(4) . Vertical and rotary operation may be run on wireline on drill pipe.
(5) . Investment cast tool steel blades allows maximum scraping ability.
