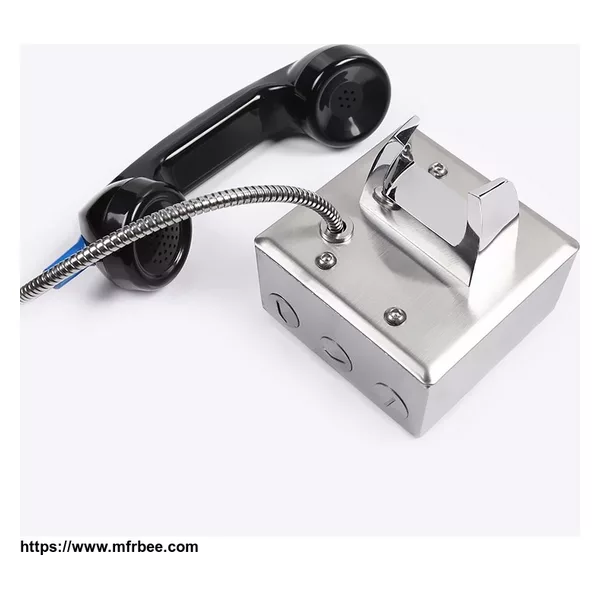

Product Name: automatic dial telephone
Product Type: JWAT123
Communication system: Switchboard
Defend Grade: IP54
Dimensions: 270 × 130 × 60
Material: Stainless steel 304+aluminum alloy
Color: stainless steel qualities + Grey
Electronic sample:
Suitable for inside prisons, labor camps, drug rehabilitation and other intercom, communication and other places which need monitoring.
1.The phone can be set with auto dialing when off hook.
2.The phone can form an independent telephone communication system with program-controlled switches and couplers.
3.The phone can be connected directly to the telecommunications network.
4.After the composition of the call system, each phone is an independent station. The malfunction of any phone doesn't affect the whole system work.
5. After the composition of the call system, the product has an automatic gain function, and the voice does not vary with distance or telephone quantity.
6.Telephone circuits within the integrated circuit using internationally accepted double-sided, with hair the exact number, call clarity, job stability, etc.
7.Stainless steel housing, high mechanical strength, strong impact.
8.Key parts of the handset and the hooks are both produced by our own company; Quality control strictly; After-sale reaction fast.
Signal voltage | DC48V |
Standby operating current | ≤1mA |
Frequency response | 250~3000 Hz |
Ringing level | ≥80dB |
Defend Grade | IP54 |
Corrosion grade | WF2 |
Ambient temperature | -40~+60℃ |
Atmospheric pressure | 80~110KPa |
Relative humidity | ≤95% |
Lead hole | 3-M20 |
Total Weight | 2kg |
Installation | Embedded/Wall mounted |
1. The caller take off-hook, automatically dial programmed number → The callee picks up the handset,both sides under normal conversation.
2. At the end of the call, hang back the handset.
