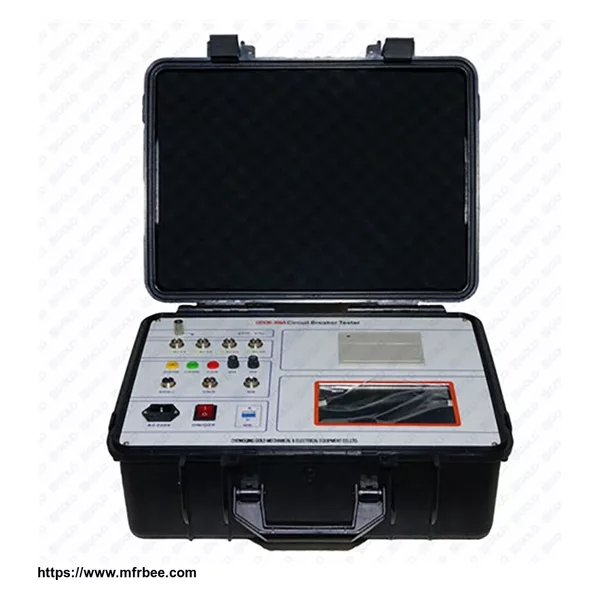

2019 New Digital Type Electric GIS Switch Timing Tester Circuit Breaker Analyzer Mechanical Characteristic Tester
It is a special instrument for power system GIS mechanical properties measuring. It is applicable to kinds of GIS mechanical properties measuring such as indoors or outdoors switches with less oil or more oil, vacuum switch, sulfur hexafluoride switches and so on.
PARAMETER | GDGK-306 |
Time measuring range | 6000ms |
Time measuring resolution | 0.1ms |
Speed measuring range | 0~20m/s |
Speed measuring resolution | 0.01m/s |
Travel measuring range | 600.0mm |
Travel measuring resolution | 1mm |
DC power | DC30~250V, 0~20A |
Working power supply | AC220V±10% 50/60Hz |
Working temp. | 0~50°C |
Related humidity | ≤85%RH |
Size | 360*280*300mm |
Weight | 10kg |
High Precision Circuit Breaker Analyzer switch mechanical characteristics comprehensive tester Introduction: Circuit Breaker Analyzer is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches ...
