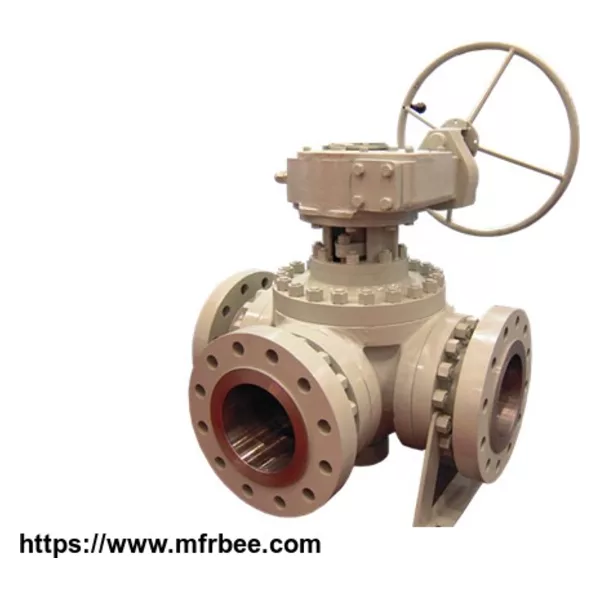

Api 6d Ball Valve

Minimum Order
1
Place Of Origin
China
FOB Price
USD $50.00 / Piece
Packaging
Plywoodcasepacking
Delivery
15 Days

Api 6d Ball Valve


specification


Floating or Trunnion Mounted. Side /Top Entry.

Full Bore/Reduced Bore. Cast 2pcs Bolted Body /Forged 3pcs Bolted or Welded Body

Soft Insert Seat/Metal–to-Metal Seat

Anti-Blowout Stem. Fire Safe Design to API 6FA/607. Anti-static Device

Double Block & Bleed Function. With Vent and Drain Hole

Grease Injection on Stem & Seat . Extended Bonnet or Stem Optional

Design: API 6D API 608 BS5351 ASME B16.34

Size: 2"-40".

Pressure Rating: 150Lb-2500Lb

Face to Face: API 6D ,ANSI B16.10

End Connection: RF RTJ/ANSI B16.5&ANSI B16.47, BW (ANSI B16.25)

Body Material: WCB, A105, LCB, LF2,CF8,CF8M,CF3,CF3M,F304,F316,F304L, F316L ,F51.

Ball Coating: ENP,Tungsten Carbide Coat (TCC), Chrome Carbide Coat (CCC)

Test: API 6D API 598. Marking: MS SP-25

Actuation: Lever, Worm Gear, Electrical, Pneumatic, Hydraulic
