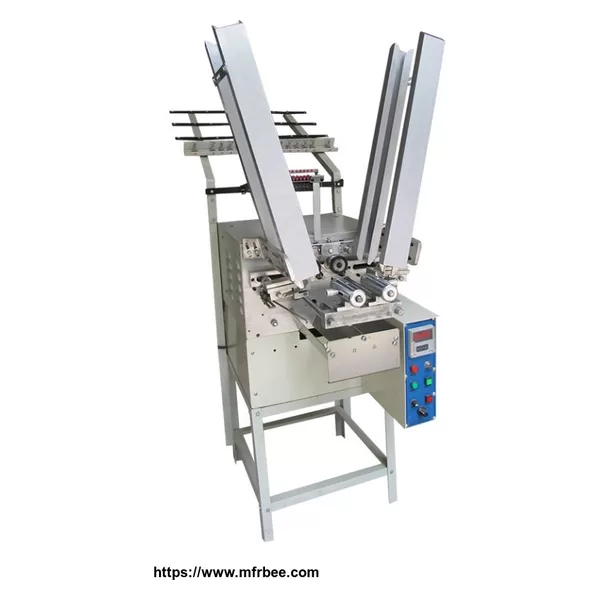

Automatic cone winding machine
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Wooden box
- Delivery
- 25 Days
Specifications
Specification:
| Technical parameters | |
| Number of spindles for each machine | 2 |
| Winding type | Parallel winding |
| Blanking mode | Mechanical |
| Maximum winding stroke | 180mm |
| Mechanical speed | 4000 revolutions/minute |
| Maximum external winding diameter | 70mm |
| Rated power | 400w |
| External dimension | 750*1500*1500mm |
- Equipped with high-velocity electrons, which has high accuracy. It is convenient to uniformly change yarn
- With multidigit automatic yarn-breaking device, used for detecting broken yarn without bobbins so as for automatic stop
- Unique automatic material-receiving mode, which may prevent yarn from being collided or getting loosened. Thus, yarn won't be polluted.
- Digital frequency control, which may greatly increase production effectiveness
- Uniform and sound coiling, which is liable to produce yarn without hidden yarn. Thus, product quality is improved.
