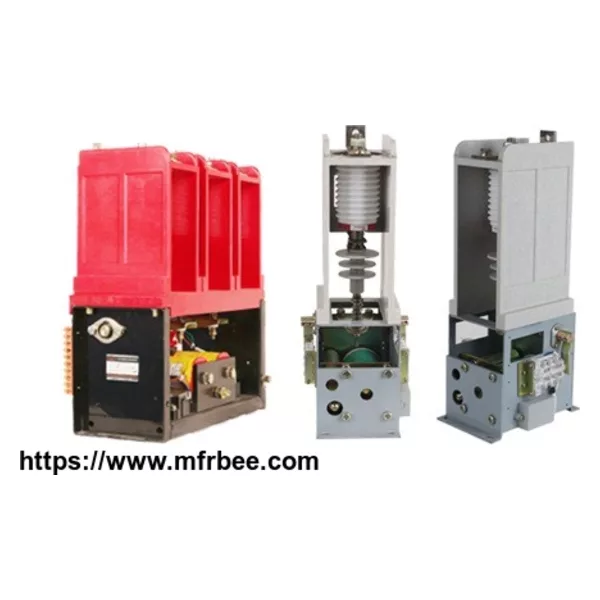

HVJ3 7.2KV vacuum contactor

HVJ3 7.2KV vacuum contactor

1. General

The vacuum contactor is mainly used in the power system with AC 50Hz and rated voltage 7.2kV, for making or breaking circuit and to make electromagnetic starter with suitable protective device and F-C switchgear.

2. Working condition:

1) Altitude should not be over 1,000m;

2) Ambient temperature: -5~40°C;

3) Average temperature in 24 hour not exceed 35°C;

4) When the highest temperature is 40°C, the relative humidity should not be higher than 50%;

5) Pollution degree: class 3

Main models and technical parameters

Rated voltage: 7.2 kv

Control voltage: 380/220/110

Rated current: 160A, 250A, 400A, 630A, 800A, 1000A

Clearance:3.5±0.3 mm

Over travel:2±0.2 mm

Pressure:>85N

Main circuit power frequency withstand voltage: 32000 v

Auxiliary circuit power frequency withstand voltage: 2500 v

Control circuit power frequency withstand voltage: 2000 v

Making capacity:10In,100 times

Breaking capacity:8In,25 times

Limit opening current(A):10In

Overload:8In,10 s

Mechanism life:1 million times

Weight: 25.5 KG

Note: “Ie” represents the rated current of main circuit
