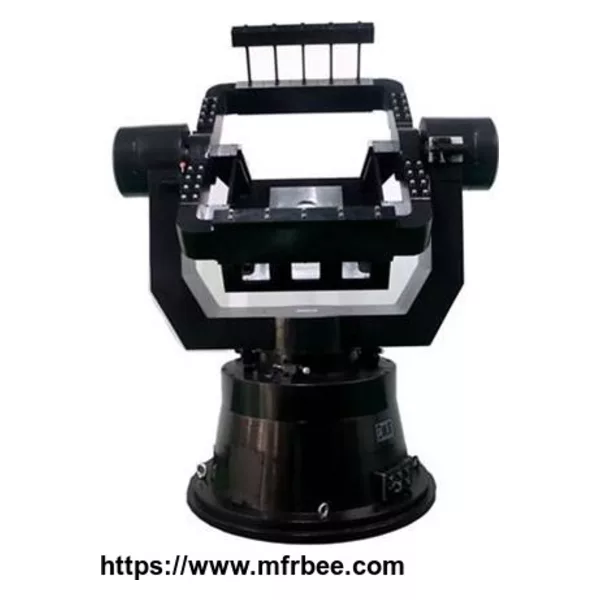

Two-Axis Position Rate Turntable
Product Quick Detail
- Place Of Origin
- Wuhan china
- Minimum Order
- 1
- Packaging
- 1
- Delivery
- 15 Days
Specifications
| Two-Axis Position Rate Turntable | ||
Inner Axis（pitch） |
Outer Axis（azimuthal） | |
| Function | This device has the function of position and rate, it can provide the benchmark of precise single and two axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems. | |
| Axis Orientation | Vertical（TU） | |
| Payload Weight | 5-40kg | |
| Dimension of Table Surface | 200-500（mm） | |
| Table flatness | 0.015mm | |
| Perpendicularity of Two-Axis | ±3″ | |
| Motion Error of Main Axis | ±3″ | ±2″ |
| Angular freedom | Continuous | Continuous |
| Position Accuracy | ±3″ | ±2″ |
| Position Resolution | 0.5″ | 0.5″ |
| Rate Range | ±0.005°/s~±400°/s | ±0.005°/s~±600°/s |
| Rate Resolution | 0.001°/s | 0.001°/s |
| Peak Acceleration | 200°/s2 | 300°/s2 |
| Conductive Slipring | 40 rings/3A | |
| Remote Control Interface | RS232/RS422 | |
| Other |
The remote control interface can be adjusted by user’s requirements； The quantity of conductive slip ring can be adjusted by user’s requirements； The dimension of table can be adjusted by user’s requirements； Technical parameter can be adjusted by user’s requirements. |
