Segmented Film For Capacitor Film
Product Quick Detail
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $5.00 / Piece
- Minimum Order
- 1
- Packaging
- To be shipped in vacuum-sealed metallized plastic bags
- Delivery
- 7~15 Days After Payment
Specifications

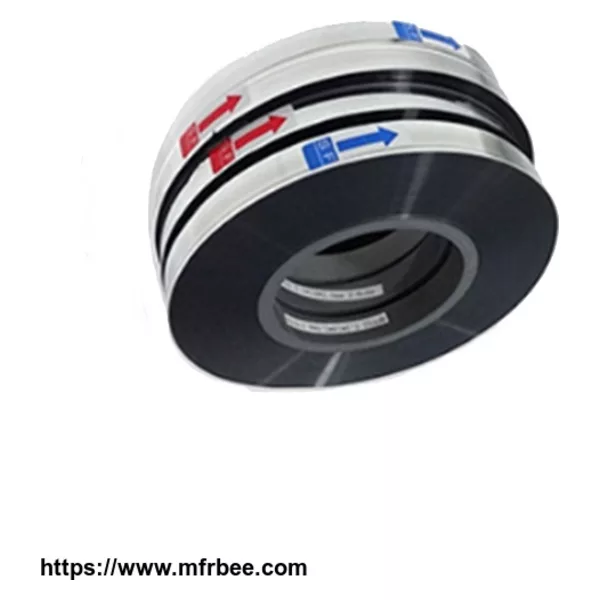

1.The film is wound around a strong core with the metallized layer facing inward. After the film has been wrapped, there will put a paster on the margin. The specified external disk diameter can be achieved.In addition, the coils are separated by plastic foam to protect the electrodes.
2.Basic Information
(1)MPP Film Type: Metallized Polypropylene Film For Capacitors
(2)Width:4.5-130mm
(3)Thickness:1.6-12um
(4)Margin Value:0.5mm 1.0mm 1.5mm 2.0mm 2.5mm
(5)Specification:Metallized Film For Capacitors
(6)Types Of Metallized Layer:Al Metallized Film、Zn/Al Metallized Film
(7)Density: 0.905+/-0.005g/cm3
(8)Processing Type:Vacuum Coating Capacitor Film
(9)Trade Mark :CSF
(10)MOQ:1 Kilogram
(11)Delivery Detail:7~15 Days After Payment
(12)Packaging Details :To be shipped in vaccum-sealed metallized plastic bags
(13)Transport Package:Vaccum Package For Standard Export Carton
(14)Port :Shanghai Or Ningbo
(15)Origin:Tongling City,Anhui Province,China(Mainland)
3.MPP Film Structure Chart
