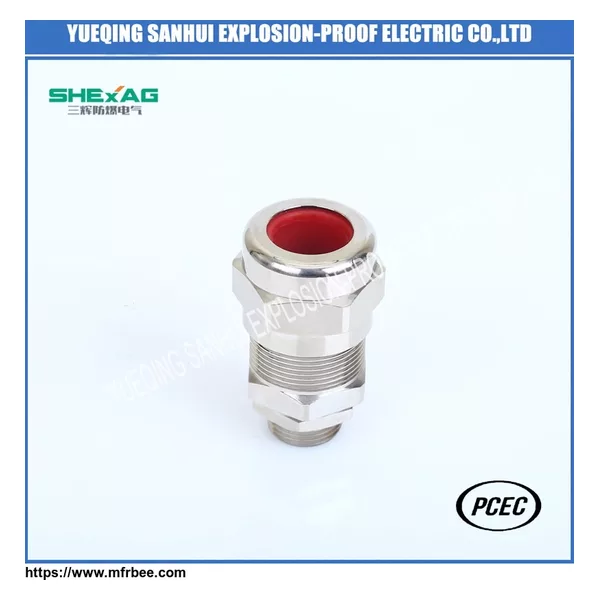

Industrial unarmored brass cable gland IP68

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Materials:Brass,Stainless steel 304,316

Surface treatment:Nickel planted,Passivation

Sealing materials:Silicon rubber,Neoprene,Teflon,PA6

Explosion mark:Exd IIC Gb/Exe II Gb/Ex tD A21 IP68

Fireproof grade:V0(UL94)

Protection level:IP68 (screwed-on the cap)

Ambient temperature:Static from -60℃ to 100℃,short up to 120℃

Dynamic from -20℃ to 80℃,short up to 100℃ without halide.

Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,Strict21,22 inflammable dust environment,it is widely used in petroleum, chemical, warehouse, food, pharmaceutical, military and other electrical cable fixing and sealing.


Size,it can be provide M16-M115,G1/2-G4,NPT1/2-NPT4.

Customization is accepted!!
If some requirement,welcome to contact with us.
