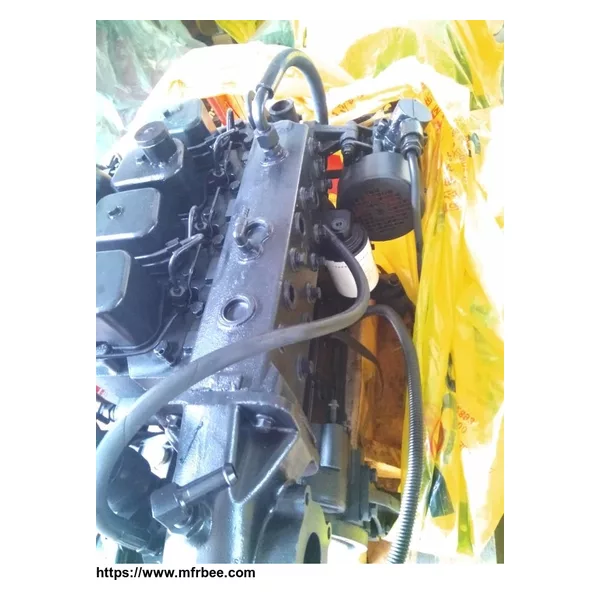

Cummins EX Flame Proof Ozone II Diesel Engine
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 1 pc
- Delivery
- 30 Days
Specifications
Cummins EX Flame Proof Ozone II Diesel Engine For Oil Field, Coal Mine, Gas Stations, Refineries, Flour, Cotton And Flax Processing Plants.
Cummins diesel engine modificated for ozone II explosion proof type, power from 80kw to 500kw.
1. Mechanical part
1.1 Explosion-proof Cylinder Head
Made of high strength HT250 gray iron, without air valve guide and seat ring, spiral intake port is adopted, intake manifold and cylinder head are cast in one, and air valve seat surface is quenched by high frequency. Explosion-proof diesel engine has integral cooling water jacket, which is cooled by circulating coolant on all high temperature surfaces.
1.2 Explosion-proof Exhaust Manifold
the single-channel exhaust manifold with integral water jacket is made of high strength gray cast iron and supercharger rear-mounted scheme. the diesel engine circulates coolant to cool all high temperature surfaces.
1.3 Explosion-proof supercharger
Water-cooled turbocharger, with cooling water jacket cast on the surface of turbine shell, is cooled by diesel engine circulating coolant on all high temperature surfaces.
1.4 Washing Tank
the exhaust gas discharged from the supercharger enters the washing tank through the exhaust main pipe with a water jacket. the entrance of the wash tank is equipped with a fence type fire arrester. the exhaust gas first passes through the flame arrester, eliminating the possible flame or Mars in the exhaust gas. the fence type flame arrester is circulated by diesel engine coolant.
1.1 Explosion-proof Cylinder Head
Made of high strength HT250 gray iron, without air valve guide and seat ring, spiral intake port is adopted, intake manifold and cylinder head are cast in one, and air valve seat surface is quenched by high frequency. Explosion-proof diesel engine has integral cooling water jacket, which is cooled by circulating coolant on all high temperature surfaces.
1.2 Explosion-proof Exhaust Manifold
the single-channel exhaust manifold with integral water jacket is made of high strength gray cast iron and supercharger rear-mounted scheme. the diesel engine circulates coolant to cool all high temperature surfaces.
1.3 Explosion-proof supercharger
Water-cooled turbocharger, with cooling water jacket cast on the surface of turbine shell, is cooled by diesel engine circulating coolant on all high temperature surfaces.
1.4 Washing Tank
the exhaust gas discharged from the supercharger enters the washing tank through the exhaust main pipe with a water jacket. the entrance of the wash tank is equipped with a fence type fire arrester. the exhaust gas first passes through the flame arrester, eliminating the possible flame or Mars in the exhaust gas. the fence type flame arrester is circulated by diesel engine coolant.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Asia,Africa,Europe,Middle East,Americas
- Founded Year:1982
- Address:South shaoshan, Yuhua district, changsha city
- Contact:jenny lin
