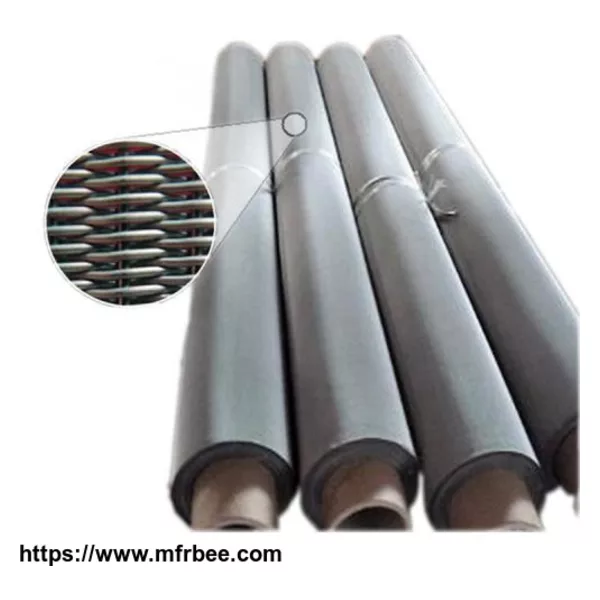

Stainless Steel Wire Mesh and 304 stainless steel wire mesh can be divided into stainless steel plain woven wire mesh, stainless steel twill woven wire mesh, stainless steel three heddie wire mesh, stainless steel three heddie wire mesh.
Woven Type: Plain Weave and Twill Weave
Mesh: 1-635 mesh, To accurately
Wire Dia.: 0.02 mm-2 mm, small deviation
Width: 190mm, 915mm, 1000mm, 1245mm to 1550mm
Length: 30m, 30.5m or cut to length minimum 2m
Hole shape: Square Hole
Wire Material: SU302,304,316,304L,316L,310S,321 Stainless steel wire
Mesh Surface: clean, smooth, small magnetic.
Packing: Water-Proof ,Plastic Paper, Wooden Case ,Pallet
Min.Order Quantity: 30 Meter/Meters
Delivery Detail: 3-10 days
Sample: Free Charge
1mesh | 0.135 | 3.5 | 0.865 | 21.97 | 74.8 |
1mesh | 0.12 | 3 | 0.88 | 22.35 | 77.4 |
1mesh | 0.105 | 2.5 | 0.895 | 22.73 | 80.1 |
1mesh | 0.08 | 2 | 0.92 | 23.36 | 84.6 |
1mesh | 0.063 | 1.6 | 0.937 | 23.8 | 87.70 |
2mesh | 0.12 | 3 | 0.38 | 9.65 | 57.8 |
2mesh | 0.105 | 2.5 | 0.395 | 10.03 | 62.4 |
2mesh | 0.08 | 2 | 0.42 | 10.66 | 70.6 |
2mesh | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 |
2 mesh | 0.047 | 1.2 | 0.453 | 11.5 | 82.1 |
2mesh | 0.41 | 10 | 0.459 | 11.65 | 84.3 |
3mesh | 0.08 | 2 | 0.253 | 6.42 | 57.6 |
3mesh | 0.063 | 1.6 | 0.27 | 6.85 | 65.6 |
3 mesh | 0.047 | 1.2 | 0.286 | 7.26 | 73.6 |
3mesh | 0.032 | 0.81 | 0.3 | 7.62 | 81.5 |
4mesh | 0.12 | 3 | 0.13 | 3.3 | 27 |
4 mesh | 0.08 | 2 | 0.17 | 4.31 | 46.2 |
4 mesh | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
4 mesh | 0.047 | 1.2 | 0.203 | 5.15 | 65.9 |
4mesh | 0.035 | 0.89 | 0.218 | 5.53 | 76 |
4mesh | 0.028 | 0.71 | 0.222 | 5.62 | 78.9 |
4mesh | 0.025 | 0.63 | 0.225 | 5.71 | 81 |
5mesh | 0.08 | 2 | 0.12 | 3.04 | 36 |
5mesh | 0.047 | 1.2 | 0.153 | 3.88 | 58.5 |
5mesh | 0.041 | 1 | 0.159 | 4.01 | 63.2 |
5mesh | 0.023 | 0.58 | 0.177 | 4.49 | 78.3 |
6mesh | 0.063 | 1.6 | 0.104 | 2.64 | 38.9 |
6mesh | 0.047 | 1.2 | 0.12 | 3.04 | 51.8 |
6mesh | 0.035 | 0.9 | 0.132 | 3.35 | 62.7 |
8mesh | 0.063 | 1.6 | 0.062 | 1.57 | 24.6 |
8mesh | 0.047 | 1.2 | 0.078 | 1.98 | 38.9 |
8mesh | 0.035 | 0.9 | 0.09 | 2.28 | 51.8 |
8mesh | 0.032 | 0.8 | 0.093 | 2.36 | 55.4 |
8mesh | 0.028 | 0.7 | 0.097 | 2.46 | 60.2 |
8mesh | 0.023 | 0.58 | 0.102 | 2.59 | 66.6 |
8mesh | 0.017 | 0.43 | 0.108 | 2.74 | 74.6 |
10mesh | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
10mesh | 0.035 | 0.9 | 0.065 | 1.65 | 42.3 |
10mesh | 0.032 | 0.8 | 0.068 | 1.27 | 46.2 |
10mesh | 0.025 | 0.63 | 0.075 | 1.9 | 56.3 |
10mesh | 0.02 | 0.5 | 0.08 | 2.03 | 64 |
12mesh | 0.041 | 1 | 0.042 | 1.06 | 25.4 |
12mesh | 0.035 | 0.9 | 0.048 | 1.22 | 33.2 |
12mesh | 0.032 | 0.8 | 0.051 | 1.29 | 37.5 |
12mesh | 0.028 | 0.7 | 0.055 | 1.39 | 43.6 |
12mesh | 0.023 | 0.58 | 0.06 | 1.52 | 51.8 |
12mesh | 0.018 | 0.45 | 0.065 | 1.65 | 60.8 |
12mesh | 0.013 | 0.33 | 0.07 | 1.77 | 70.6 |
14mesh | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
14mesh | 0.025 | 0.63 | 0.046 | 0.99 | 41.5 |
14mesh | 0.023 | 0.58 | 0.048 | 1.22 | 45.2 |
14mesh | 0.02 | 0.5 | 0.051 | 1.3 | 51 |
16mesh | 0.032 | 0.8 | 0.031 | 0.78 | 23.8 |
16mesh | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
16mesh | 0.023 | 0.58 | 0.04 | 1.01 | 39.9 |
16mesh | 0.018 | 0.45 | 0.045 | 1.14 | 50.7 |
16mesh | 0.009 | 0.23 | 0.054 | 1.37 | 73.3 |
18mesh | 0.02 | 0.5 | 0.036 | 0.91 | 41.1 |
18mesh | 0.018 | 0.45 | 0.038 | 0.96 | 48.3 |
18mesh | 0.009 | 0.23 | 0.047 | 1.19 | 70.4 |
20mesh | 0.023 | 0.58 | 0.027 | 0.68 | 29.2 |
20mesh | 0.02 | 0.5 | 0.03 | 0.76 | 36 |
20mesh | 0.018 | 0.45 | 0.032 | 0.81 | 41 |
20mesh | 0.016 | 0.4 | 0.034 | 0.86 | 46.2 |
20mesh | 0.014 | 0.35 | 0.036 | 0.91 | 51.8 |
20mesh | 0.009 | 0.23 | 0.041 | 1.04 | 67.2 |
24mesh | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
28mesh | 0.01 | 0.25 | 0.026 | 0.66 | 51.8 |
30mesh | 0.013 | 0.33 | 0.02 | 0.5 | 37.1 |
30mesh | 0.012 | 0.3 | 0.021 | 0.53 | 40.8 |
30mesh | 0.011 | 0.28 | 0.022 | 0.55 | 44.8 |
30mesh | 0.0065 | 0.16 | 0.027 | 0.68 | 64.8 |
35mesh | 0.012 | 0.3 | 0.017′ | 0.43 | 33.8 |
35mesh | 0.01 | 0.25 | 0.019 | 0.48 | 42.4 |
40mesh | 0.014 | 0.35 | 0.011 | 0.28 | 19.3 |
40mesh | 0.012 | 0.3 | 0.013 | 0.33 | 27.4 |
40mesh | 0.01 | 0.25 | 0.015 | 0.38 | 36 |
40mesh | 0.0095 | 0.24 | 0.016 | 0.4 | 38.4 |
50mesh | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
50mesh | 0.008 | 0.20` | 0.012 | 0.3 | 36 |
60mesh | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
60mesh | 0.0059 | 0.15 | 0.011 | 0.28 | 40.2 |
70mesh | 0.0065 | 0.17 | 0.008 | 0.2 | 29.8 |
80mesh | 0.007 | 0.18 | 0.006 | 0.15 | 19.4 |
80mesh | 0.0055 | 0.14 | 0.007 | 0.17 | 31.4 |
80mesh | 0.0047 | 0.12 | 0.0088 | 0.22 | 49.6 |
90mesh | 0.0055 | 0.14 | 0.006 | 0.15 | 25.4 |
100mesh | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
120mesh | 0.004 | 0.1 | 0.0043 | 0.11 | 26.6 |
120mesh | 0.0037 | 0.09 | 0.005 | 0.12 | 30.7 |
130mesh | 0.0034 | 0.0086 | 0.0043 | 0.11 | 31.2 |
150mesh | 0.0026 | 0.066 | 0.0041 | 0.1 | 37.4 |
165mesh | 0.0019 | 0.048 | 0.0041 | 0.1 | 44 |
180mesh | 0.0023 | 0.058 | 0.0032 | 0.08 | 33.5 |
180mesh | 0.002 | 0.05 | 0.0035 | 0.09 | 41.1 |
200mesh | 0.002 | 0.05 | 0.003 | 0.076 | 36 |
200mesh | 0.0016 | 0.04 | 0.0035 | 0.089 | 46 |
220mesh | 0.0019 | 0.048 | 0.0026 | 0.066 | 33 |
230mesh | 0.0014 | 0.035 | 0.0028 | 0.071 | 46 |
250mesh | 0.0016 | 0.04 | 0.0024 | 0.061 | 36 |
270mesh | 0.0014 | 0.04 | 0.0022 | 0.055 | 38 |
300mesh | 0.0012 | 0.03 | 0.0021 | 0.053 | 40.1 |
325mesh | 0.0014 | 0.04 | 0.0017 | 0.043 | 30 |
325mesh | 0.0011 | 0.028 | 0.002 | 0.05 | 42 |
400mesh | 0.001 | 0.025 | 0.0015 | 0.038 | 36 |
500mesh | 0.001 | 0.025 | 0.0011 | 0.028 | 25 |
635mesh | 0.0009 | 0.022 | 0.0006 | 0.015 | 14.5 |
