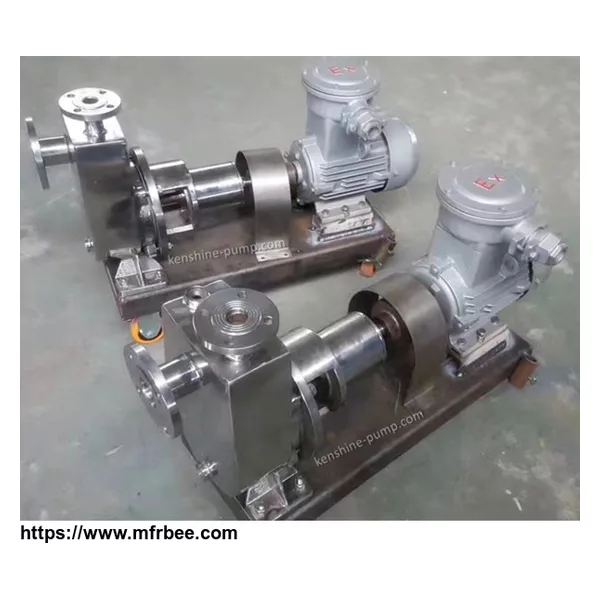

JMZ,FMZ Stainless steel self priming alcohol pump
Product Quick Detail
- FOB Price
- USD $650.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- Made in China
- Packaging
- plywood case
- Delivery
- 10 Days
Specifications
JMZ mobile self priming pump adopts new mechanical seal assembly, safe and explosion-proof, no leakage for a long time. JMZ mobile self priming pump is suitable for conveying all kinds of wine,
beverage, dairy, pharmaceutical, gasoline, solvent oil, syrup etc at the temperature from -35 to 120 degree Celsius. This pump has the characteristics of compact structure, easy operation, small
volume, light weight, stable performance, no bottom valve, no filling water when starting etc. This pump can be used to transport concentrated slurry, acid, alkali, salt and other liquids after
replacing 3-4 parts.
The pump performance range: flow of 3m3/h-200m3/h, head of 15m-60m, diameter of 25mm-2000mm
| Model | Inlet(mm) | outlet(mm) | Flow rate(m3/h) | Head(m) | Suction height(m) | Speed(rpm) |
| 25JMZ-22 | 25 | 25 | 3 | 22 | 5 | 2900 |
| 25JMZ-30 | 25 | 25 | 3 | 30 | 6 | 2900 |
| 40JMZ-22 | 40 | 25 | 6 | 22 | 5 | 2900 |
| 40JMZ-30 | 40 | 25 | 6 | 30 | 6 | 2900 |
| 40JMZ-40 | 40 | 25 | 6 | 40 | 6 | 2900 |
| 50JMZ-22 | 50 | 40 | 12 | 22 | 5 | 2900 |
| 50JMZ-30T | 50 | 50 | 20 | 30 | 6 | 2900 |
| 50JMZ-40 | 50 | 40 | 12 | 40 | 6 | 2900 |
| 65JMZ-22 | 65 | 50 | 24 | 22 | 5 | 2900 |
| 65JMZ-30T | 65 | 65 | 30 | 30 | 6 | 2900 |
| 80JMZ-22 | 80 | 65 | 48 | 22 | 5 | 2900 |
| 80JMZ-30 | 80 | 65 | 48 | 30 | 6 | 2900 |
| 100JMZ-22 | 100 | 80 | 80 | 22 | 5 | 2900 |
| 100JMZ-30 | 100 | 80 | 100 | 30 | 5 | 2900 |
| 150JMZ-22 | 150 | 125 | 160 | 22 | 5 | 2900 |
| 150JMZ-30 | 150 | 125 | 160 | 30 | 5 | 2900 |
| 200JMZ-22 | 200 | 150 | 200 | 22 | 5 | 1450 |
| 200JMZ-30 | 200 | 150 | 200 | 30 | 5 | 1450 |
