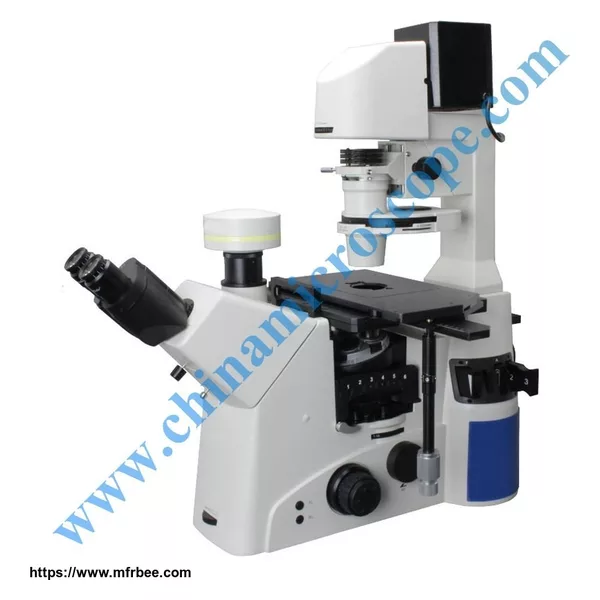

XDS-5B research level inverted biological microscope
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
| Model | XSD-5B | XSD-5BF |
|
Optical
System |
Infinity NIS plan Semi-Apo optical system | |
| Eyepiece | High eye-point plan eyepiece PL10X/22, field of view: 22mm. | |
| High eye-point plan eyepiece PL10X/25, field of view: 25mm | ||
| High eye-point plan eyepiece PL12.5X/17.5, field of view: 17.5mm | ||
| High eye-point plan eyepiece PL15X/16, field of view: 16mm | ||
| High eye-point plan eyepiece PL20X/12, field of view: 12mm | ||
| Objective | N-IPLAN PH PLAN Semi-Apo lens 4X、10X、20X、40X | |
| Nosepiece | Revolving sixtuple nosepiece（with DIC slot） | |
| Viewing Head |
45°inclined trinocular head(with Bertrand lens)
interpupillary distance range: 47-78mm. |
|
| 45°inclined binocular tilting head interpupillary distance range: 47-78mm. | ||
| Stage |
Three layer mechanical stage, moving range 130X85mm, flexible knob,
can fix different small size stage on the top for different applications |
|
|
Focusing
adjustment |
Coaxial focus system with up-limited and tension adjustment. | |
|
Coarse range: 9mm(up 2mm, down 7mm), coarse focus 2mm one circle,
fine focus: 0.2mm one circle. |
||
| Holder | Teraseki holder（φ38mm and φ54mm） | |
| Middle zoom | 1X, 1.5X | |
| Condenser |
N.A.0.55 long working distance turret type condenser, WD 26mm,
and fix with six different device: PH, DIC, bright field. |
|
|
Main body
interface |
Turret type interface switch(left interface, right interface, eyepiece viewing
switch), beam splitting ratio: left side/100:0; right side/80:20; optional: 1:100 |
|
|
Observation
Method |
Bright field, dark field,
phase contrast, DIC |
Bright field, dark field,
phase contrast, DIC, fluorescence |
|
Transmitting
Illumination |
12V/100W halogen lamp kohler illumination, LED optional | |
|
Reflecting
Illumination |
--- |
100W mercury lamp
With max 6 fluorescent cube holder turret type, center able iris diaphragm and field diaphragm, three hole filter slide |
