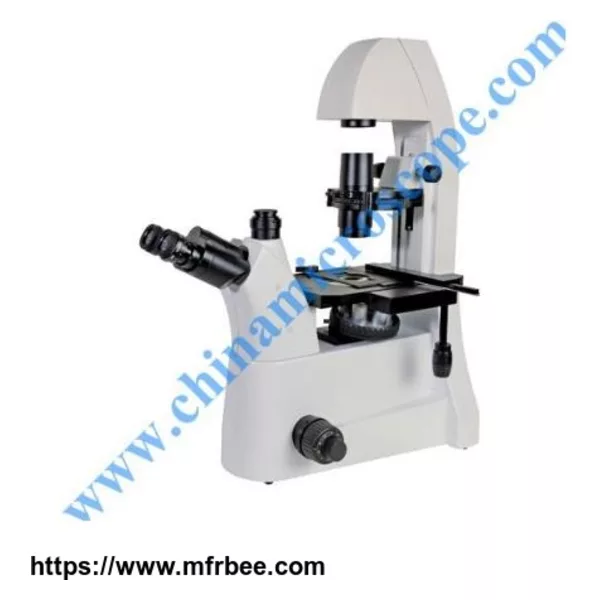

XDS-3B inverted biological microscope
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
| Specification | |
| Optical system | infinite optical system |
| Viewing Head | Compensation Free Trinocular Head Inclinet at 45°(50mm-75mm) |
| Eyepiece | Plan WF10×/22mm |
| Objective |
Infinity L.W.D.big numerical aperture plan apochromatic objective,
4×/0.15（L.W.D.21.6mm) ,cover-glass thickness 1.5mm 10×/0.3 phase contrast（L.W.D.3mm）,cover-glass thickness 1.5mm 20×/0.5 phase contrast（L.W.D.4.27mm）,cover-glass thickness 1.5mm 40×(S) /0.6 phase contrast（L.W.D.2.23mm）,cover-glass thickness 1.5mm |
| Nosepiece | Sextupe Nosepiece |
| Stage | Double layer mechanical stage |
| Stage Size:242mm×172mm | |
| Moving Range:75mm×40mm | |
| Low XY adjusting hand wheel | |
| Focusing | Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.001mm |
| Light Source | 3WLED,brightness adjustable |
| Condenser | Abbe condenser,working distance 28mm |
| Phase contrast device | Contrast table （28mm）,Centering telescope |
| Filter | Blue、Green、yellow and frosted glass |
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:1958
- Address:NO. 252 Diancecun, Jiangbei District, Chongqing, China
- Contact:Craig Liu
