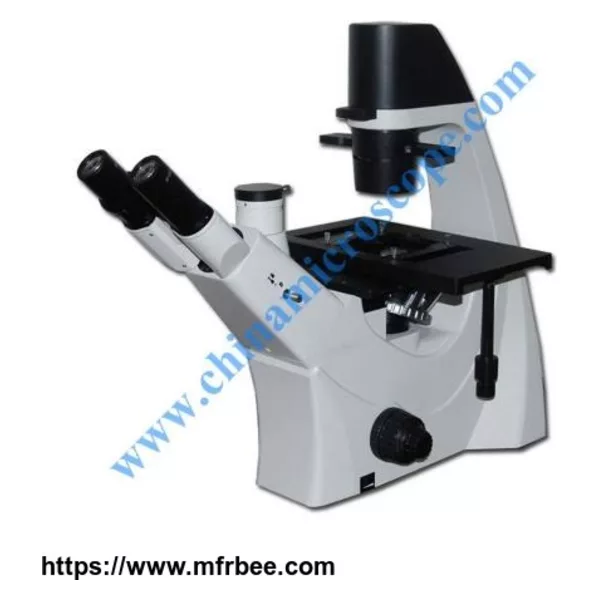

Main
parameters |
Total magnification | 100X~400X(standard) | |||
Mechanical tube length | ∝ | ||||
Conjugate distance
of objective |
∝ | ||||
Eyepiece | Wide-field eyepiece | WF 10X | Ф22mm | Ф30mm |
Parfocal
Distance 10mm |
Centering telescope | |||||
Trinocular | Inclination 45°,can be shot in 100% light flux,interpupillary distance:48 ~75mm | ||||
Phase-contrast
Objective |
magnification | N.A | W.D(mm) | T (mm) | Remarks |
10X | 0.25 | 19.4 | 1.2 | Remark“PHP2” | |
20X | 0.40 | 8.0 | 1.2 | Remark“PHP2” | |
40X | 0.60 | 3.5 | 1.2 | Remark“PHP2” | |
objective | 10X | 0.25 | 19.4 | 1.2 | |
Nosepiece | Quintuple | ||||
Focus system |
Coaxial coarse/fine focus, with tension adjustable and up stop,
minimum division of fine focusing is 2μm. Effective distance.8mm |
||||
Condenser |
Long working distance condenser, working distance: 70mm,
and with pull board phase contrast unit |
