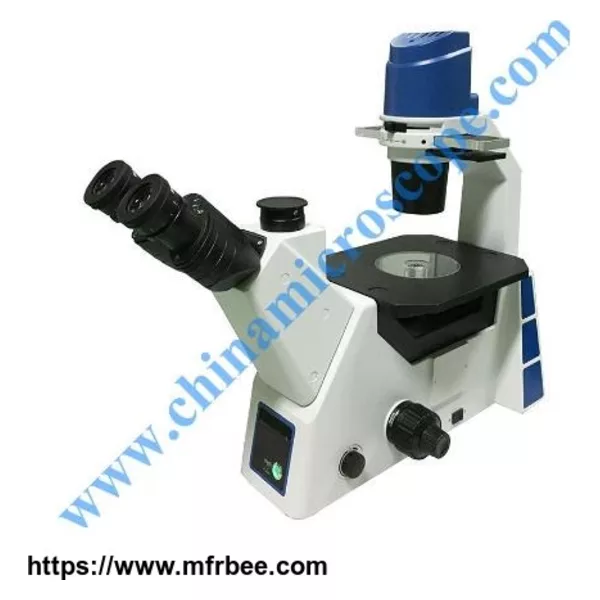

XDS-41 inverted biological microscope
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
| Item | XDS-41 | |
| Frame | One-piece construction from arm to base,with flourescence excitation interface | ● |
| UCIS Infinity Independent Achromatic Optical Design | ||
| With digital camera joint on the left side | ||
| Co-axial coarse and fine focusing knob,precision:0.001mm | ||
| Wide voltage:100∽240V,47/63Hz | ||
|
Seidentopf
Observation Tube |
Trnocular Tube, Interpupillary distance
50-75mm,45°inclined,diopter adjustable. Split ratio: 50:50 |
● |
| Eyepiece | WF10X/22 (reticle optional) | ●● |
| WF15X/16 (reticle optional) | ○○ | |
|
Infinity Plan
Objectives |
4X,10X,20X,40X,60X | ● |
|
Infinity Phase
Contrast Plan Objectives |
4X,10X,20X,40X | ○ |
|
Infinity Plan
Florescent Objectives |
4X,10X,20X,40X,60X | ○ |
|
Infinity Semi-apo
Plan Florescent Phase contract Objectives |
20X,40X | ○ |
| Fixed Stage |
Size: 215（W）×250（L）mm
Could mount the Stage extension board and attachable mechanical stage. Size of stage extension board: 120（W）×80（L）mm |
● |
