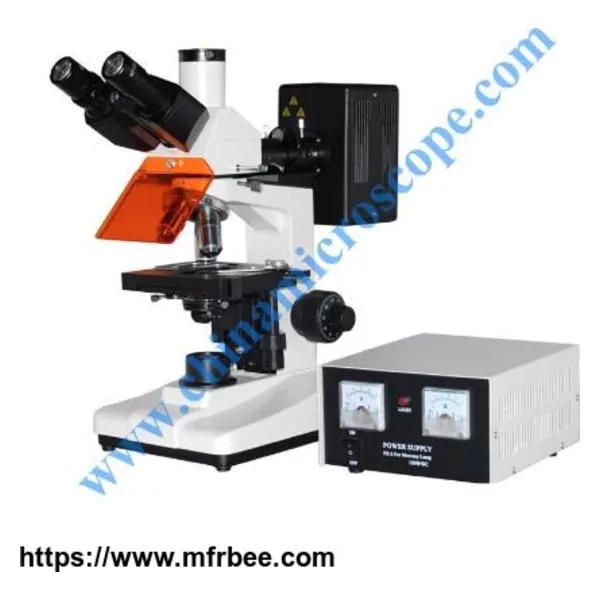

Model | LY1001 |
Eyepiece | Wide field WF10X(18mm) |
Objective | Achromatic 4X/0.10 |
Achromatic 10X/0.25 | |
Achromatic 100X/1.25(Spring, oil) | |
Fluorescence 25X/0.65 | |
Eyepiece tube | Trinocular (inclination of 30˚) |
Focus system |
Coaxial coarse/fine focus, with tension adjustable and up stop,
minimum division of fine focusing: 2μm. |
Nosepiece | Quadruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm) |
Abbe condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | For halogen lamp |
Light source | 6V 20W Halogen lamp with brightness control. |
Reflected
fluorescence system |
Mercury lamp house 100W/DC |
Power supply unit:AV:110V or 220V | |
Fluorescence filter system B excitation wavelength:420~485nm | |
Fluorescence filter system G excitation wavelength:460~550nm |
