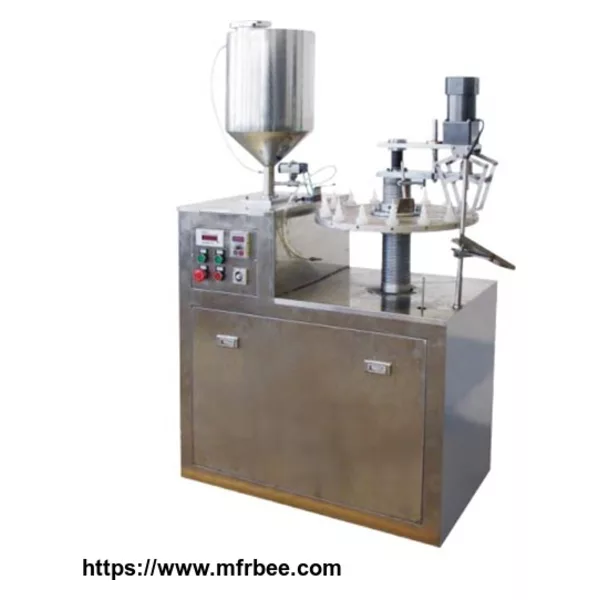

Semi auto 502 Cyanoacrelate adhesive filling and capping machine

GS type is Cyanoacrelate Adhesive Filling & Screw-Cap Sealing Machine. The machine is specially designed and suitable for filling & sealing of plastic bottles packed. There are 16 stations totally, all the actions is finished during the moving.

Procedure:

Bottle feeding by hand, Filling, Detection (No filling, no capping), Cap Feeding, Cap Sealing, Bottle exist.

Working theory:

The filling is by gravity, self-suction or pressure. Meanwhile, the caps are fed with the help of electro-magnetic vibration tray and are screwed by motor. Thus caps are screwed tightly. Step-less speed regulation and photoelectric detection is adopted, no bottle, no filling. It is used for the filling and sealing of liquid material or 502 glue. The machine is best for glue manufacture and can also used in fields of pharmaceuticals, cosmetics, advertisement, etc.

Specification:

1. Voltage: 380V±10%

2. Mechanical Capacity: 30~50time/min. (step-less)

3. Filling Quantity: 0.5ml and 1ml

4. Filling Precision: >98%

5. Cap Screw: 99% (up to standard)

6. Number of bottle holder: 16

8. Power: 1.5kw

9. Weight: 400kg

10. Dimension: 1000mm*600mm*1700mm
