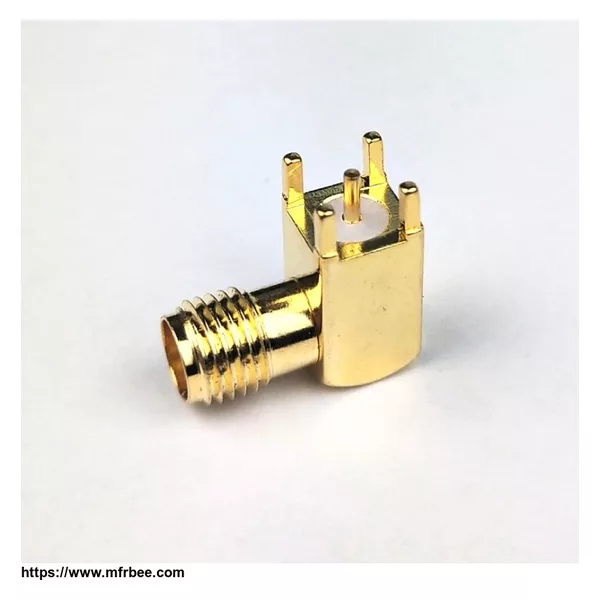

SMA Right Angle PCB RF Coaxial Female Connector
Product Quick Detail
- Place Of Origin
- China
- Product Name
- sma female connector
- Type
- sma
- Color
- gold
- Website
- www.futai8.com
- Minimum Order
- 100
- Application
- RF
- Material
- copper
- Gender
- female
- Plated
- gold plated
- Sample
- welcome ask sample for testing
- Packaging
- 100 pcs/bag
- Delivery
- 7 Days
Specifications
| Model | FT-Connector-117 | |
| Major Technical Characteristics | ||
| Type | SMA-KWE-117 | |
| Impedance | 50Ω | |
| Frequency Range | DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
| Center conductor retention force | ≥0.28 N | |
| Insertion Loss | ≤0.15dB/6GHz | |
| Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f
Semi-Rigid Cable≤1.07+0.018f |
|
|
Right angle Flexible Cable ≤1.20+0.03f
Semi-Rigid Cable≤1.17+0.02f |
||
| Durability(mating) | ≥500(cycles) | |
| Cable | PCB | |
| Material & Plating | ||
| Body | Brass | Gold plated |
| Pin contact | Brass | Gold plated |
| Socket contact | Beryllium-copper Customized) | Gold plated |
| Resilient contact | Beryllium-copper | Gold plated |
| Insulator | PTFE | |
| Crimp ferrule | Copper alloy | Nickel or gold plated |
| O-ring sealing | 6146 silicone rubber |
