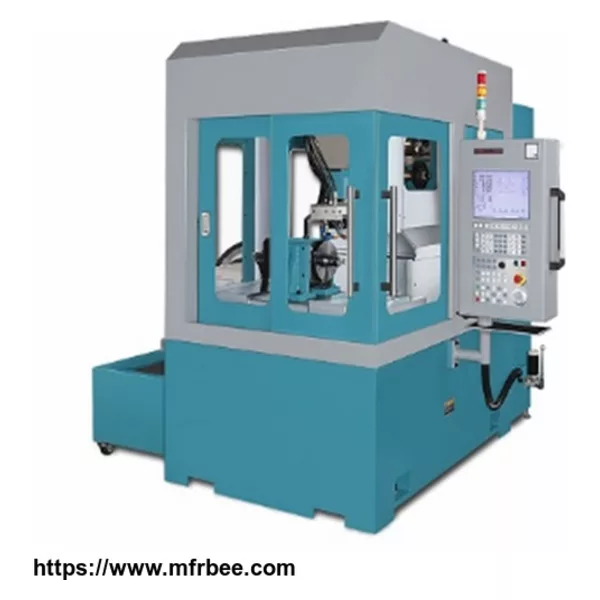

Wire Eroding machine EW-70
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
|
Technical spec- -close loop CNC servo controlled axes X axis 400mm travel with linear scale feedback Y axis 300mm travel with linear scale feedback Z axis 200mm travel with linear scale feedback C axis for tool index 0~360 deg A axis for electrode angle -120 ~ 120 deg -Tool dimension Outer diameter max- 350mm -Machinery Dielectric pump delivery rate 50 l/min Dielectric tank capacity approx- 100 l Connected load 5-0 Kva Dimensions 2540 mm x 2090 mm x 2400 mm Weight approx- 4000 kg
|
