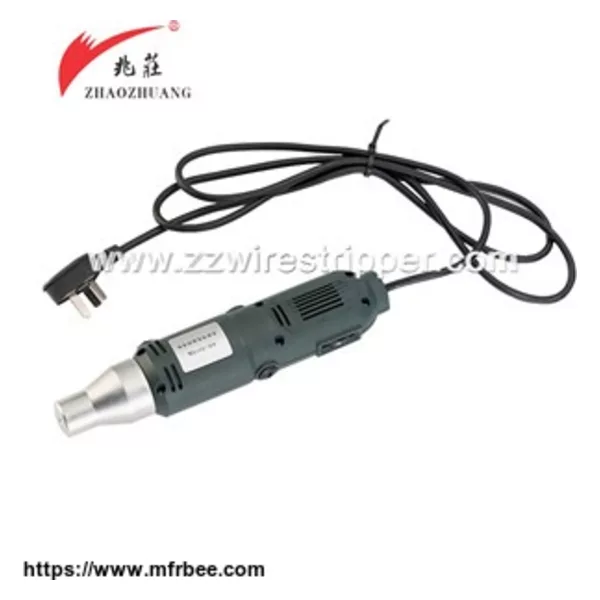

XC-0316 hand-held wire stripper

1. Use:
XC-0316-enameled wire stripper. It is a compat, easy-to-use and hand-held tools enameled wire stripper. Can be adjusted to adapt to a variety of enameled wire, comfortable and convenient, fast and curettage enameled wire insulation coating the surface, decontamination clean, smooth surface. Its superior performance, completely replace the traditional manual working, sandpaper grinding wheel and the syrup to paint tools, such as corrosion, not only greatly improve the efficiency of its work, but also strong welding, electrical, electronics, instrumentation, transformers, electronics, household appliances, Coil electric tools, such as manufacturing and maintenance industry ideal enameled wire striping paint equipment. It sets no level adjustment electronic, electrical and paint striping blade as one, a lightweight, durable and micro-switches, striping paint with fast, efficient, simple, stable performance, low failure rate and a new layout and design of practical features.
2.Properties and parameters:
Copper wire diameter:Φ0.3-2.5 mm2
Power supply:220V 50W
Mode of operation:hand-held
Stripping length:3-50mm
the speed of adjustment:steppes speed regulation
3.How:
1, to be striping the first Shenmue Turret central enameled wire, press the power switch activated, the motor rotation immediately.
2, the anti-enameled wire along the axial direction of movement, until the end of the enameled wire, the film can be removed.
3, release the power button switches, motor immediately stop rotation.
4.Related note:
1, when the enameled wire different specifications, to adjust the speed of adjustment back-end potential, (1 stall the slowest, the fastest 6 file) to the smaller diameter "slow" the direction of regulation, the larger diameter to the "fast "Direction of regulation, when the film can not completely clean enameled wire, increasing speed until clean so far. If the governor was in enameled wire striper cut, they should reduce speed until meet the requirements so far. According to the method selected the most appropriate speed, as the diameter of the corresponding speed, can be considered to have adjusted well.
2, striping paint to the end of the location of enameled wire, will not end immediately from the blade, it is necessary to stop such as knives from the knife-edge after the rotation, so as to avoid a sudden spin at the enameled wire damage from the knife-edge blade.
3, enameled wire before striping paint, to be slightly straightened by hand, not be allowed to avoid enameled wire on the knife-edge.
4, after falling into the use of the power unreasonable under the circumstances, can spin under the security cover, remove the film clean powder.
