Mining Ventilation Resistance Tester

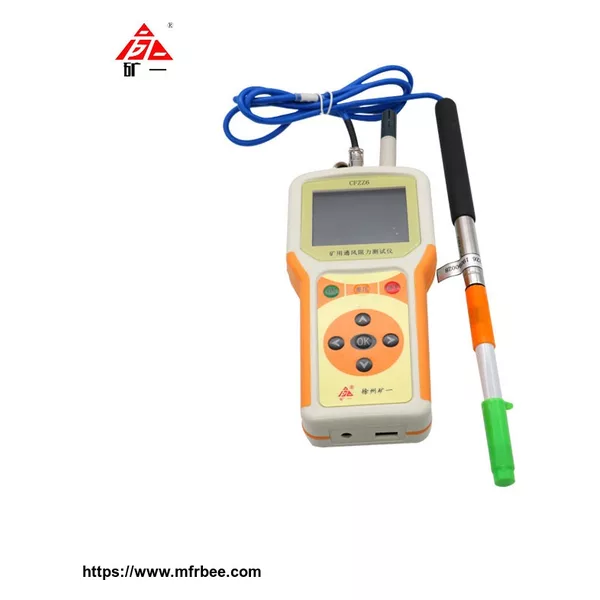

CFZZ6 Mining Ventilation Resistance Tester

Model: CFZZ6

Description: CFZZ6 Mining Ventilation Resistance Tester

MA: MFA140219

KA: KFA140056

ExibI: 320140827

Patent No. ZL 2012 2 0322596.3

Introduction:

1. Applicable for test of wind speed, absolute pressure, differential pressure, CH₄concentration, temperature and humidity.

2. Comprehensively analysis the loss of line ventilation resistance, local resistance of fan station, resistance distribution of ventilation system and wind pressure, distribution of air volume.

3. For coal mining, non-coal mining, tunnel and other roadways, provide them a scientific basis for ventilation system ' s design, study, safety evaluation, construction and mining.

Technology parameters:

1. Temperature and humidity sensor:

(a) Temperature(℃): -10.0~50.0, accuracy:±0.3

(b) Humidity(%RH): 20.0~98.0, accuracy:±5

2. Wind speed sensor:

(a) Wind speed(m/s): 0.20~5.00, accuracy:±0.2

(b) Wind speed(m/s): >5.00~20.00, accuracy:±0.3

3. Atmospheric pressure sensor:

(a) Absolute pressure(hPa): 100.00~1200.00, accuracy:±0.3, resolving ability: 0.01

(b) Differential pressure(hPa): -1100.00~1100.00, accuracy:±0.1, resolving ability: 0.01

4. Carrier catalytic element:

(a) CH₄concentration (%CH₄): 0.00~1.00, accuracy:±0.1

(b) CH₄concentration (%CH₄): 1.00~3.00, accuracy: truth value±10%

(c) CH₄concentration (%CH₄): 3.00~4.00, accuracy:±0.3
