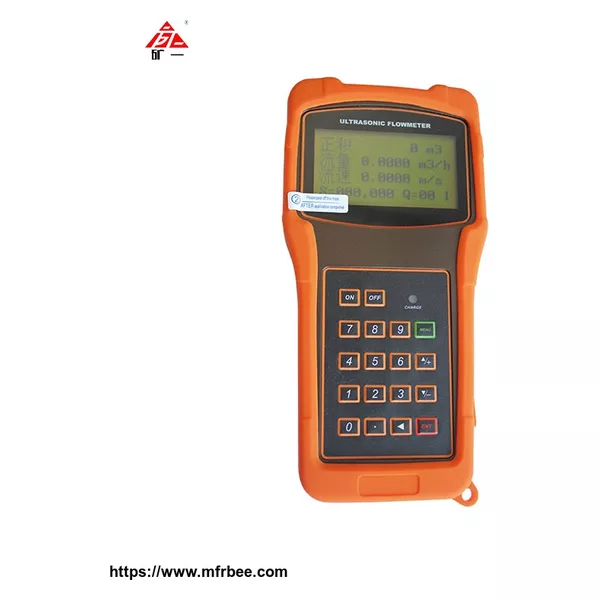

Mining Portable Ultrasonic Flow Meter
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (mainland)
- Packaging
- Cases
- Delivery
- 15 Days
Specifications
Model: YHL6
Description: YHL6 Mining Portable Ultrasonic Flow Meter
MA: MFA140230
KA: KFA140053
ExibI : 320140795
Introduction:
The measurement is used for detecting liquid flow (The liquid must be single and uniform and can conduct ultrasonic). Non-touch type and large measurement range. Explosive dust or gas environment is accepted. Measuring objects include water, pure water, sea water, polluted water, chemical liquid, river water, fuel oil.
Technology parameters:
| Project parameter | Basic parameter | ||
| range | resolution | Error expected | |
| Flow(m3/h) | 0~999.99 | 0.01 | ± 2.0% |
| Flow velocity (m/s) | -32.0000~32.0000 | 0.0001 | ± 1.0% |
Features:
1. Applicable for pipe with steel, stainless steel, cast iron, PVC, copper, aluminum materials.
2. Putting magnetic sensor to external wall of pipe can achieve non-touch measurement.
3. Can display accumulated flow, instant flow, flow velocity and working status at the same time.
4. Battery life: 12 hours. Meter owns prompt function for electricity quantity.
