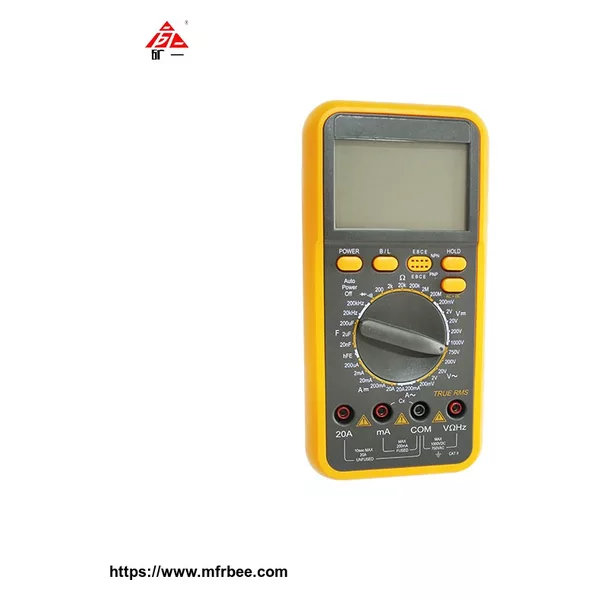

Digital Multi-meter
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China（Mainland）
- Packaging
- Cases
- Delivery
- 15 Days
Specifications
Product Name: Digital Multi-meter
Introduction:
1. Built-in rectifier, measure alternating/direct current, voltage, resistance and other electrical parameters.
2. Consisted with magneto electric ammeter, measuring circuit and option switch.
3. Measure a variety of electrical parameters by using option switch.
Technology parameters:
| Measuring range | Accuracy |
| DC voltage 200mV/2V/20V/200V/1000V | ± (0.05%+3) |
| AC voltage 200mV/2V/20V/200V/750V | ±(0.8%+25) |
| DC 200uA/2mA/20mA/200mA/20A | ± (0.5%+4) |
| AC 200mA/20A | ±(1.5%+25) |
| Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.2%+5) |
| Capacitance 20nF/2uF/200uF | ±(4.0%+50) |
| Frequency 20kHz/200kHz | ±(1.5%+25) |
