IP51 Protection level HD-SDI Capsule Slip Ring
Product Quick Detail
- FOB Price
- USD $50.00 / Piece
- Minimum Order
- 10
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
JARCH IP51 Protection level HD-SDI Capsule Slip Ring
Quick Details:
| Model Number: | JSR-CS022-12Q | Current Rating: | 2A/Ring maximum |
| Outer Size: | 22mm | Circuits: | 12 |
| Volt AC/DC(V): | mV~240Vac/Vdc | Contact Material: | Gold-Gold contacts |
| Speed(rpm): | 250RPM | Lead Wire: | UL Teflon Awg28,color-coded, |
For any tiny voltage, high frequency of rotator, EMF, thermocouple, computer signals, Strain the gauge, current, system Bus, Can Bus, Profibus, RS422, RS485, PLC control, digital/analog video, digital audio, gigabit Ethernet, weight sensor signal and power connection.
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Common fields of this product: aerial photography uav, high-speed ball, small yuntai, stage lamp, small ferris wheel.

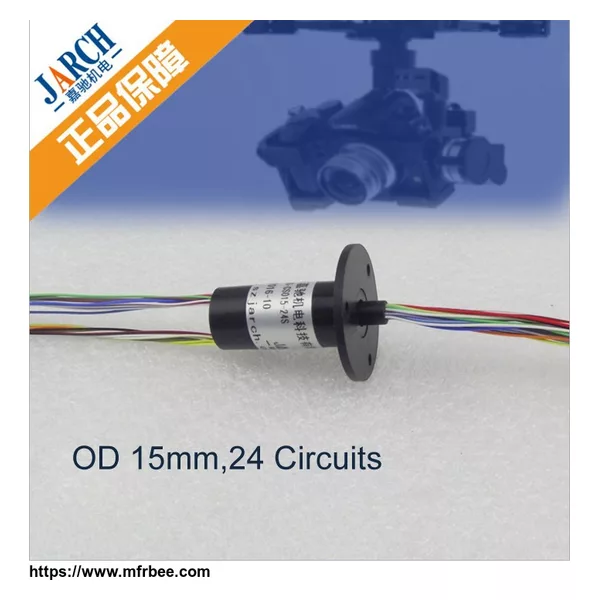

The JSR-CS015-24S, with 24 wires and compact 15mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.
Dimension:
