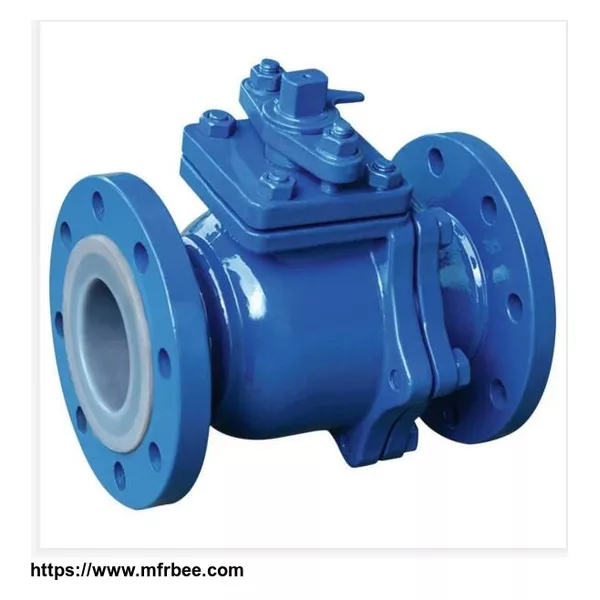

flanged Ball Valve

FOB Price
USD $10.00 / Piece
Place Of Origin
XingTai
Minimum Order
100
Packaging
Woodenpacking
Delivery
21Days


Specification:


1. Nominal pressure or pressure level: pn1.0-32.0 MPa, ANSI CLASS 150-900, jis10-20k;
2. Nominal diameter or caliber: DN6 ~ 900, NPS 1/4 ~ 36;
3, connection: flange, butt welding, thread, socket welding, etc.
4. Applicable temperature: -196℃ ~ 540℃;
5. Driving mode: manual, worm wheel and worm drive, pneumatic, electric, hydraulic, gas-liquid linkage, electro-hydraulic linkage;
6, body material: WCB, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M (316L), Ti.Choose different materials, suitable for water, steam, oil, nitric acid, acetic acid, oxidation medium, urea and other media.

Product Advantages:


Ball valve is a new valve widely used in recent years, it has the following advantages:


1.The fluid resistance is small, and its resistance coefficient is equal to the same length of pipe section.


2.Simple structure, small size and light weight.


3.Tight and reliable, the sealing surface material of ball valve is widely used in plastic, good sealing, and has been widely used in vacuum system.


4.Easy to operate, fast to open and close, from full open to full close as long as the rotation of 90°, easy to remote control.


5.Easy maintenance, ball valve structure is simple, sealing ring is generally active, disassembly and replacement are more convenient.


6.When fully open or fully closed, the sealing surface of the ball and valve seat is isolated from the medium, which will not cause erosion of the sealing surface of the valve when the medium passes through.


7.Wide range of applications, from small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.Valves of this type shall generally be installed horizontally in pipelines.

Hebei Tumeng Machinery Manufacturing Co., Ltd.(HBTM), founded in 2014, is located in Xinhe County, Xingtai City, Hebei Province, China, which covers an area of 50,000 m² and has about 300 employees, is the low-pressure valve and manufacture with coated/clay sand casting technology and base specializing in valve moulding, development, manufacturing, machining, performance test and sales in domestic and foreign markets.

HBTM has obtainedCNAS ISO9001: 2015ISO14001:2015OHSAS18001:2007,API6D(6D-0759),CE certifications. As well as the Manufacture license of Special Equipment Level A1, A2 and B1, B2 People’s Republic of China.

HBTM has been named “Credit Management Enterprise” & “China Quality Trustworthy Enterprise” by AQSIQ & CIQA. It is also a member of China Valve Association council, China Foundry Association. Also an approved supplier of Petro China (CNPC) and China Power, and Hebei Iron and Steel Company.

HBTM manufactures the valves and castings per standards of: GB/JB(china), ANSI, API, DIN, BS, JIS, and uses materials of: HT200, HT250, QT400, QT450, WCA, WCB, WCC, CF3, CF8, CF3M, CF8M, 1Cr5Mo, LCB etc.

HBTM valves includes gate valves, globe valves, ball valves, butterfly valves, check valves and flange, which covers 300 series and 2000 specs, annual production capacity 10,000 tons. Products are widely used in petroleum, petrochemical, power generation, metallurgy, water system, urban construction.

With reliable quality and favorable service, HBTM would like to invite the friends from all around the world to come and join us for a possible cooperation in the near future.
