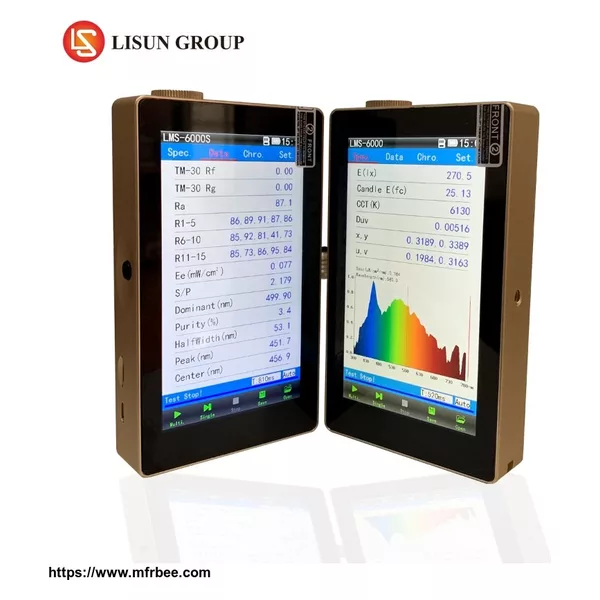

The Portable CCD LED Colorimeter Spectroradiometer has the following versions which can measure different parameters:
• LMS-6000: illuminance (lux), E(Fc), Ee(W/m2), Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth,
Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram
• LMS-6000L: cd/m2, fL, Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI
The Chroma Meter Specification:
• Spectrum Range: 380~780nm. (The LMS-6000P is 350~800nm and LMS-6000S is 350~950nm)
• Spectral Resolution: ±0.2nm, Reproducibility: ±0.5nm
• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.005
• Correlated Color Temperature CCT: 1, 000K ~ 25, 000K (±0.6%)
• Illuminance range: 5~200,000lx
• LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854
• With 4000mAh rechargeable Li-ion battery continuous working time 20 hours
• Size is one Iphone 6S and thickness is like diameter of 1RMB coin
• Connect to PC via USB, English version software can be run in Win7, Win8 or Win10
CCD Detector and spectrum range is 380~780nm. Test lux and all color parameters. The size is compact and applicated with 5inch big LCD Screen, with 4000mAH battery which can work over ...
Both Spectral and Photometric test on 350~800nm, SMA905 optical fiber to Integrating Sphere and USB connect to PC, it can do the LED Optical Maintenance test such as flux VS time or CCT VS ...
LPCE-3 is a CCD Spectroradiometer Integrating Sphere Compact System for LED Testing. It is suitable for single LED and LED luminaires\' photometric, colorimetric and electrical measurement. The measured data meets the requirements ofCIE 177 System Configuration: CCD ...
