Nema 23 stepper motor for CNC machine

Place Of Origin
China (Mainland)
Supply Ability
150000 Pieces per Month
Warranty Time
2 Years
Minimum Order
1 Piece
Packaging
The package we used is strongest recycle carton and durable EPE foam.
Delivery
around 1 week

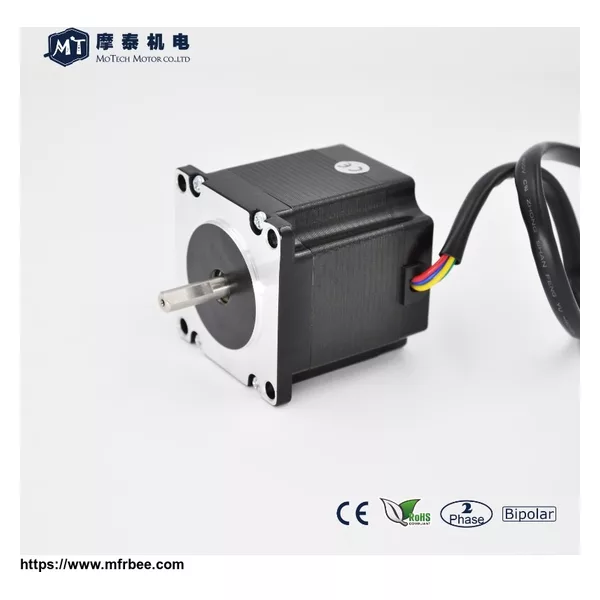

Nema 23 Stepper Motor | Model Number: MT-23HS
Holding Torque: 84~445 oz.in (6.0~32.0 kg.cm)
Current / Phase: 2A~3.1A
Frame Size: 57*57mm
Motor Lenght: from 41mm to 110mm
Certification: ISO,CE, ROHS
Popular Items: MT-2303HS280AW, MT-2305HS280AW
For more details: http://motechmotor.com/productDetail-0105-30.html


According to different requirement and application, we provide customized motor.

Common cases:

1)Special shaft sizes and features, like multiple flat options, helical cut, slotted options, hollow, etc.

2)Special lead lengths, cables and crimped various connectors

3)Different pulleys, gears and couplings

4)Encoders, brakes and integrated drivers

5)Waterproof and dustproof treatment

6)High-temperature resistance


If you have any requirement, don’t hesitate to contact us. Our email: sales@motechmotor.com
