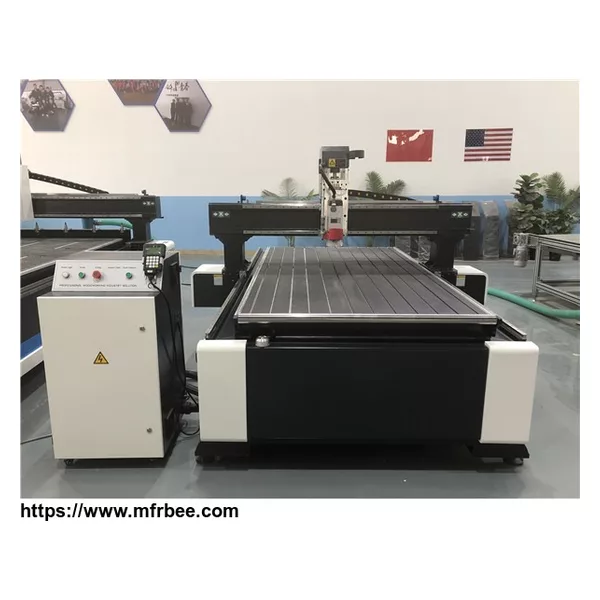

Product Description
Machine Application industry
-woodworking industries:Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing
video game cabinets and panels,computer table and Plate furniture auxiliary processing.
-The advertising industry:Advertising signs, logo production, acrylic cutting, forming system module, a variety
of materials advertising the production of decorative products.
-die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,
plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Machine configuration and parameters
Control system | RichAuto DSP A11 Control system |
Spindle | China CC brand 4.5kw air cooling,ER32,speed 6000-18000rpm/min |
Machine body and gantry | Heavy duty metal welding,Quenching and sandblasting,Twice painting |
Table | Aluminum alloy T Slot with PVC |
Driving system | Stepped motor and Yako2811 driver |
X, Y Axis structure | Wuxi Xinyue 1.25M helical rack and Japan SHIMPO Reducer |
Z Axis Structure | Original Taiwan TBI ball screw |
X Y Z Axis Square rails | Original Taiwan HIWIN brand 25 square rails |
Inverter | Fuling Brand 5.5kw |
Electric parts | France Schneider |
Limited switch | Japan Omron |
Machine cable | German Siemens OEM factory cable |
Oil lubrication | Hand control with Aluminum oil pipe |
Machine working size | X Axis-1300mm ,Y Axis-2500mm ,Z Axis-200mm |
Machine Size | Length 3200mm ,Wide 2280mm ,High 1800mm |
Machine Max.travel speed | 30m/min |
Machine Max.working speed | 20m/min |
Machine Voltage | 3PH ,380V ,50/60HZ |
Machine weight | 1500kg |
