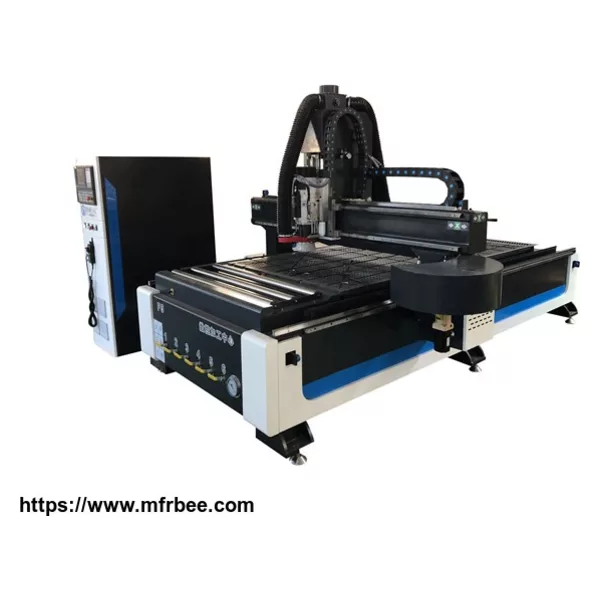

F5-12D ATC CNC Router
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- FOB Price
- USD $30,000.00 / Piece
- Packaging
- N/A
- Delivery
- 30 Days
Specifications
F5-12D ATC CNC Router
Product Description
Machine configuration and parameters
| Control system | Taiwan Syntec 6MB with automatic unloading |
| Spindle | China CC brand 9KW Spindle with 12 tools disc atc |
| Machine body and gantry | Heavy duty metal welding,Quenching and sandblasting,Twice painting |
| Table | Vacuum |
| Driving system | Japan Yaskawa 850W Servo |
| X, Y Axis structure | 2M helical rack and Japan SHIMPO Reducer |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Original Taiwan HIWIN brand 30 square rails |
| Inverter | Fuling Brand 11kw |
| Electric parts | France Schneider |
| Limited switch | Japan Omron |
| Machine cable | German Siemens OEM factory cable |
| Oil lubrication | Automatic control with Aluminum oil pipe |
| Machine working size | X Axis-1300mm ,Y Axis-2500mm ,Z Axis-100mm |
| Machine Size | Length 3800mm ,Wide 2280mm ,High 2000mm |
| Machine Max.travel speed | 60m/min |
| Machine Max.working speed | 20m/min |
| Machine Voltage | 3PH ,380V ,50/60HZ |
| Machine weight | 2000kg |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Middle East
- Founded Year:2013
- Address:Jinan city
- Contact:Kevin Lee
