Recommended For:

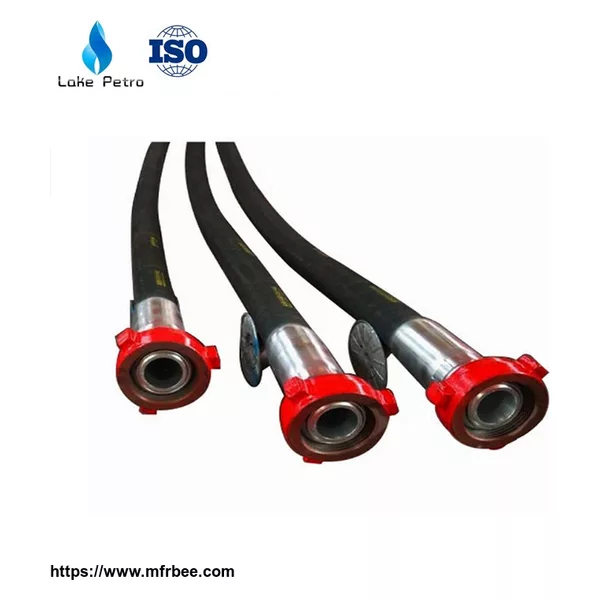

Flexible hose between the riser and manifold or around the ball joint of offshore drilling rigs, specially designed to withstand high pressure.
Tube:
Modified Nitrile. Black. Resists abrasion, corrosion, oil, and up to 20% H2S.
Reinforcement:
Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:
Fire resistant rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:
Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.
Temperature:
-4℉ to +200℉ (-20℃ to +93℃) continuous service.
Options:
Accessories such as safety clamps and hose lift eyes are available upon request.
Test:
Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
Contact information
Attn: Melody WangMobile: 0086-18307551623 (wechat/whatsapp)
Email: melody(at)lakepetro.com
1.Purpose: suitable for rotary hose for flexible connection between the top of the drilling riser and the vertically movable water faucet in the oil drilling and mud delivery systems,and for the adjustment of installing error between the drilling pump line and the riser for the ...
