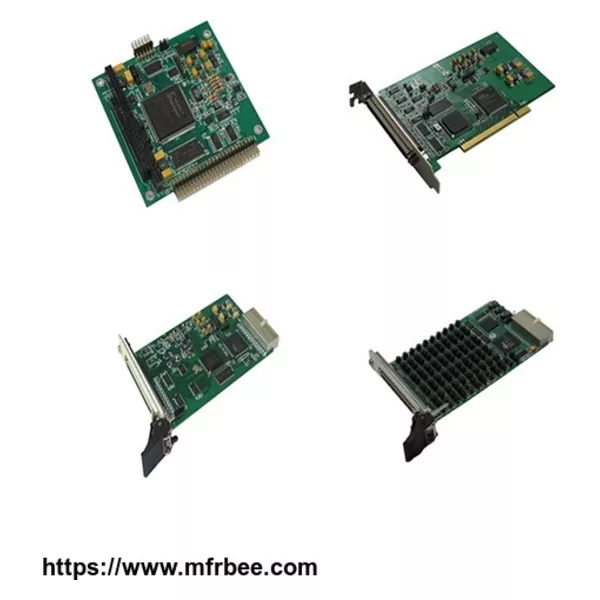

8 Channel 32 Bit Counter Function Board

Product Description

The ZY46201counter function module is a multifunctional data acquisition counter function module based on PXI/CPCI bus, which has an 8-channel 32-bit programmable countdown counter in pulse counting mode. This counter can conduct test of frequency, period, pulse width, half period, edge interval detection and work as a timer. Furthermore, it generates interrupt electrical level mark at the end of counting and has such prominent functions: retriggable monostable trigger, hardware/software trigger gate and PWM generator, 32-channel TTL digital input and output, input/output direction set by programmed software, programmable digital filter with filter frequency from 0Hz to 10MHz. This module also can support input jumping detection and positive-edge, negative-edge, or positive-edge and negative-edge.

General Specifications

External dimensions (L×W×H) ........... Standard PXI/CPCI 3U card 160mm×100mm×4HP,

tolerance<0.2mm, with 3U puller

Connector ........... SCSI-100 plug-and-jack type connector

Working Environment

Temperature range ........... -40℃ ~ +85℃

Relative humidity ........... Work, 5~85%, no condensation

storage, 5~95%, no condensation

Typical Applications

Construction of automatic test system

Data acquisition and counting control system
