API603 Gate Valve
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- CHINA
- Minimum Order
- 1
- Packaging
- International STD seaworthy packing, Plywood Crates
- Delivery
- 15 Days
Specifications

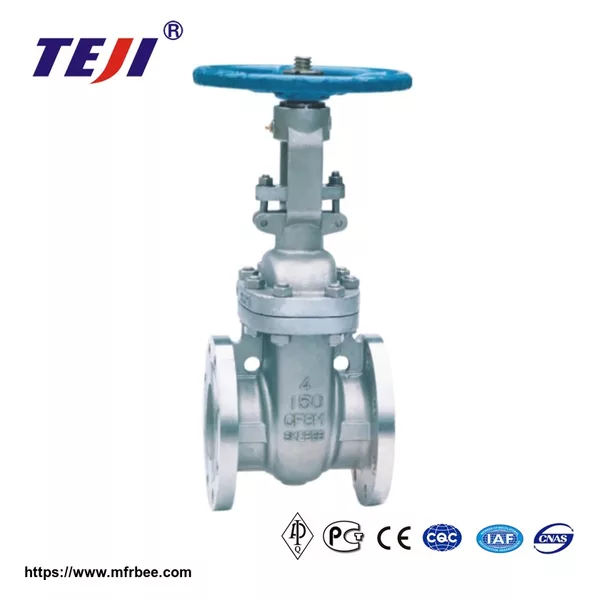

API603 Gate Valve
API603 gate valve is stainless steel gate valve series products. Using different material, it is suitable for a variety of corrosive and non-corrosive medium, such as nitric acid, acetic acid, water, oil, oxidizing medium. The face to face dimension of API603 standard gate valve is same as API600 standard, and they can be interchanged. But the wall thickness of API603 gate valve is according to ASTM B16.34, is thinner than API600 series gate valve, so that API603 gate valve is cheaper than API600 gate valve.
Specification:
l Size:1/2”~16”
l Pressure Rating: Class150~600LB
l Main Materials:CF8, CF8M, CF3, CF3M etc.
l Design and Manufacture: API603
l Face-to-Face:ASME B16.10, DIN3202
l Ends Connection: Flange,Butt Welding
l Inspection & Testing: API 598
l Operator: Manual, Worm Gear, Electric, Pneumatic.
Feature:
l Light Weight
l Compact Structure
l Easy to Open and Close
Low Project Costs
