Gabion Box

Place Of Origin
China
FOB Price
USD $10.00 / Piece
Packaging
according to customers requirement
Delivery
according to customers requirement

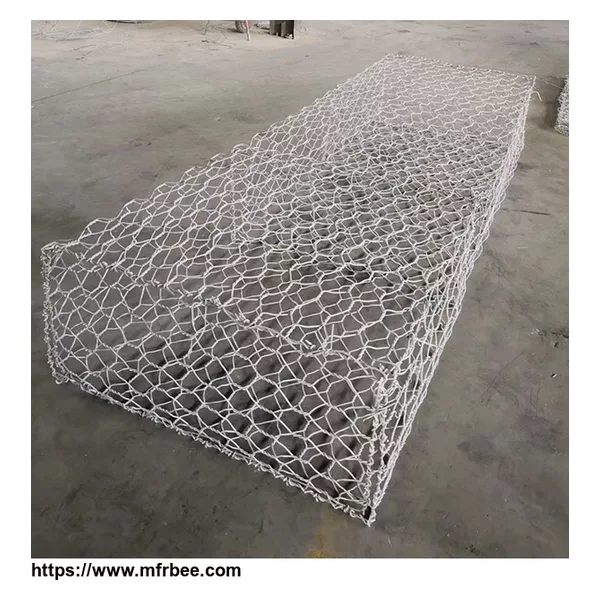

Gabion Box




Product Details

Gabion box , also named gabion basket

Wire Materials:

1) Galvanized Wire:about zinc coated,we can provide 50g-500g/㎡ to meet different country standard.

2) Galfan Wire:about Galfan,5% Al or 10%Al is available.

3) PVC Coated Wire:silver,black green etc.

Gabion Basket Mesh Size:Different gabion and size

1. standard gabion box/gabion basket: size:2x1x1m

2. Reno mattress/gabion mattress: 4x2x0.3m, 6x2x0.3m

3. Gabion roll: 2x50m, 3x50m

4. Terrmesh gabion: 2x1x1x3m, 2x1x0.5x3m

5. Sack gabion: 1.8x0.6m(LxW) , 2.7x0.6m

Common size is 60*80mm, 80*100mm,100*120mm, 120*150mm,we can produce other allowed tolerance mesh size.

Application:

1. To control and guide of water or flood

2. Spillway dam or diversion dam

3. Preventing of rockfall

4. Preventing soil erosion

5. Bridge protection

6. Strengthening structure of soil

7. Protection engineering of seaside area

Specifications
Gabion Boxes:
80x100 mm
100x120 mm
120x150 mm
Mesh Wire Dia. 2.70 mm Zinc coating: >260g/㎡
Edge Wire Dia. 3.40 mm Zinc coating: >275g/㎡
Tie Wire Dia. 2.20 mm Zinc coating: >240g/㎡
Mattress:60x80 mm Mesh Wire Dia. 2.20 mm Zinc coating: >240g/㎡
Edge Wire Dia. 2.70 mm Zinc coating: >260g/㎡
Tie Wire Dia. 2.20 mm Zinc coating: >240g/㎡
Special sizes are available. Mesh Wire Dia. 2.00~4.00 mm
Edge Wire Dia. 2.70~4.00 mm
Tie Wire Dia. 2.00~2.20 mm
