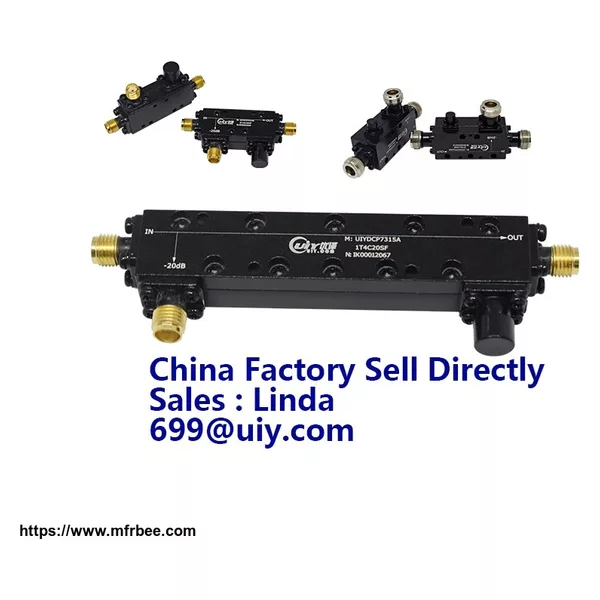

RF Directional Coupler
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
RF Microwave Components Factory Customized
Directional Coupler
| Model No. | Freq.Range (GHz) | Nominal Coupling(dB) | Flatness (dB) | IL. (dB) | Directivity (dB) | VSWR | Power(W) | Connector Type | Temp. (°C) | Dimension LxWxH(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| UIYDCP12815A | 0.4~0.5 | 10~30 | ±0.7 | 0.5 | 18 | 1.25 | 50 | SMA-F | -55~+85 | 128×15×11 |
| UIYDCP13315A | 0.5~2.5 | 10~30 | ±0.7 | 0.5 | 18 | 1.25 | 50 | SMA-F | -55~+85 | 133×15×11 |
| UIYDCP8515A | 0.8~2.5 | 10~30 | ±0.7 | 0.5 | 18 | 1.25 | 50 | SMA-F | -55~+85 | 85×15×11 |
| UIYDCP7315A | 1.0~4.0 | 10~30 | ±0.7 | 0.5 | 18 | 1.25 | 50 | SMA-F | -55~+85 | 73×15×11 |
| UIYDCP4315A | 2.0~8.0 | 6 ~30 | ±0.7 | 0.5 | 18 | 1.25 | 50 | SMA, N | -55~+85 | 43×15×11 |
| UIYDCP3315A | 8.0~18.0 | 10~20 | ±0.7 | 0.8 | 10 | 1.25 | 50 | SMA-F | -55~+85 | 33×15×11 |
| UIYDCP4315B | 8.0~18.0 | 30 | ±1.0 | 0.8 | 10 | 1.25 | 50 | SMA-F | -55~+85 | 43×15×11 |
1-Packaging Details: Standard Export Carton Package.
2-Shipping Method: As below.
3-Delivery Time: 5-7 days after payment .
4-Payment: T/T, Paypal, Western Union
5-Others: Pls feel free to ask me, we will reply you soon.
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
→Main product: 1) RF Isolators. 2)RF Circulators. 3)RF Filters. 4)RF Amplifiers. 5)Power Divider / Splitter.6) Duplexer/Triplexer. 7)Hybridge Combiner. 8)Coaxial Termination. 9)Coaxial Attenuator. 10)Directional Coupler. 11)Waveguide to Coaxial Adapter etc.
Advantage
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - OEM & Contract Manufacturing
