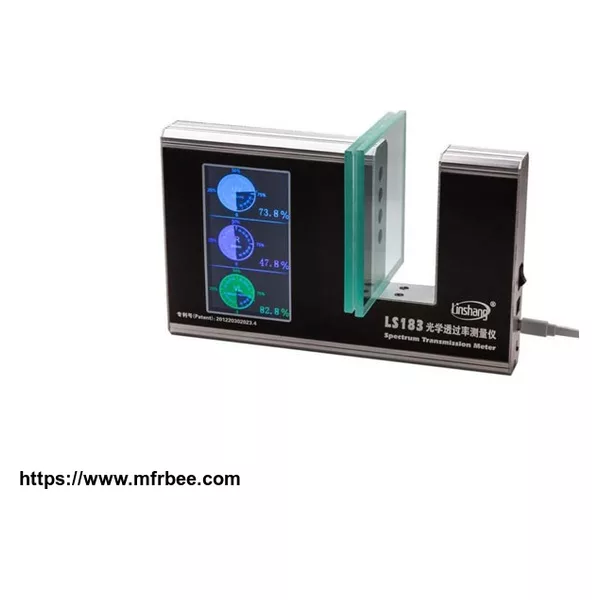

LS183 Spectrum Transmission Meter
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Business Department Carton packaging, aviation wooden frame packaging, shipping pallet packaging
- Delivery
- 1-3days
Specifications
Spectrum Transmission Meter
LS183 is able to simultaneously measure and display UV, Visible and Infrared transmission values. This meter is self-contained light sources and self-calibration. No adjustment is needed. The users only need plug the power supply, turn on the switch and put the sample in the opening. The resulting performance data appear on the display.
Parameters of LS183 Spectrum Transmission Meter
1. Size: 216mm *134mm *29mm (L*H*W)
2. Testing opening: Wide 47mm * Height 91mm
3. Weigh: 590g
4. Sample thickness: < 47mm
5. Resolution: 0.1%
6. Accuracy: +/-2%(Colorless and transparent material)
7. UV peak wavelength: 365nm
8. Visible light wavelength: 380nm-760nm (Full Weighted Spectrum)
9. IR Peak wavelength 940nm
10. Power supply: 5V AC/DC Adapter
Features of LS183 Spectrum Transmission Meter
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Self-calibration and auto-calibration, NO need any manual adjustments.
3. Simple operation, putting the testing sample in the opening, UV, Visible and Infrared transmission values of the sample will simultaneously display.
