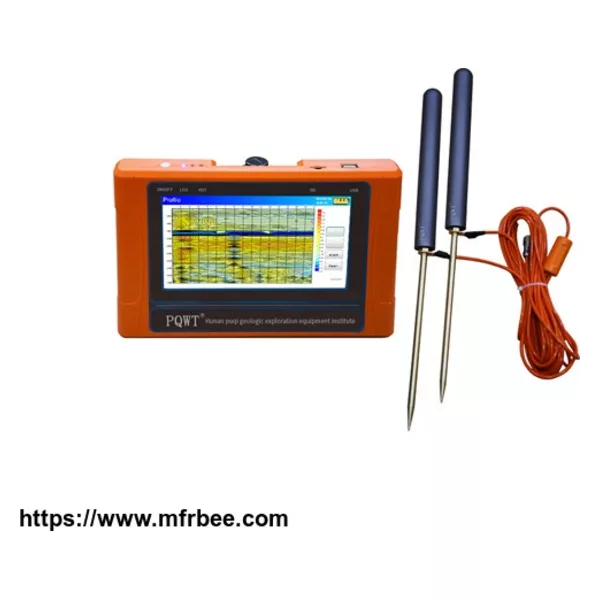

Automatic Mapping Water Detector PQWT-TC300

Automatic Mapping Water DetectorPQWT TC300

PQWT-TC series automatic mapping water detector is based on the Earth’s electromagnetic field as the field source, based on the difference in the conductivity of different underground geological structures, and by studying the variation law of the electric field components at different frequencies to study the geological structure and changes, to find groundwater resources by scientific method.Changes in geological structure are displayed in real-time through multiple curves. Automatic form mapping geological profile by one key operate easily, get rid of complicated computer graphics. The site can quickly understand the geological structure through the automatic mapping curve and profile, and analyze specific information such as aquifers,fractures, faults, and karst caves.The instrument is widely used in the rapid analysis of geological structure changes in different terrains such as plains,hills,mountains, plateaus, and basins to determine well locations, aquifers, and aquifer depth.

Product Description Specification

Parts

Main switch

Power light

Test light

Systerm reset button

Memory care

USB port

LCD touch screen

Battery holder

Copper electrode

Alloy electrode bar

MN Plug

Electrode cable

Advantages

1. Apply to multiple and complex terrain exploration

2. The instrument can automatic mapping and get result on site

3. Profile map shows aquifer and depth

4. Expert remote assistance to analysis well location

5. Inexperienced people can learn the operation in 5 minutes

Wiring Method

(M N are the electrode, O is the measurement point, Point distance is 1-5m)

The data collected by the instrument each time is the midpoint data between the two electrodes. The electrode distance is 10m, and the distance between points is generally 1-5m (the standard is 1m).Electrode spacing and point spacing must keep the same distance for one measuring line. As the left picture shows.
