Poly (Polycrystalline Diamond Powder)

1) Properties

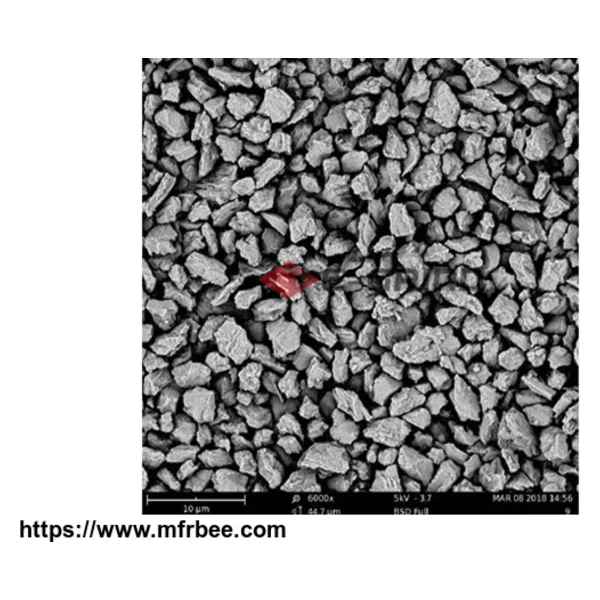

Detonation-synthesized polycrystalline diamond micro-powder

The structure resembles the rare natural polycrystalline black diamond, metallic-grey, superior toughness, self-sharpening.

Monocrystalline vs polycrystalline diamond

polycrystalline diamond micro-powder allows the manufacturing of the smoothest surface possible:

a. When using polycrystalline diamond micro-powder of size 2-4micron to the polishing surface, Ra(roughness)<1.6nm

b. When using polycrystalline diamond micro-powder of size 0-0.5micron to the polishing surface, Ra(roughness)<1.3-1.4nm

c. When using polycrystalline diamond micro-powder of size 0-0.125micron to the polishing surface, Ra(roughness)<0.1nm

polycrystalline diamond can maintain its dull mono-crystalline structure by releasing the outer layer, hence will produce the most scratch free surface possible.

When applied to the surface of a workpiece (for example, the inner surface of a cylinder in an engine) via chemical plating method, the wearability of the surface is superior to that of a surface treated with any other materials.

Via after-sinter technique, polycrystalline diamond micro-powder can be turned into polycrystalline diamond particles of a large size that are highly valuable in a variety of industries.

2) Application

Lapping and polishing a variety of surfaces that require superior smoothness.

Improving the wearability of a mechanical component

Via after-sinter technique can be applied in a variety of industries.

Can be made into liquid abrasives, gel abrasives, and many other types of abrasive tools that are capable of ultra-fine lapping and polishing tasks.

Industries:

Diamond micro powder can be used for below industries:

Computer industry: Read/Write head lapping, rigid disk media texturing

Gem polishing

Semi-Conductor, electronic ceramic, optical instruments

Used as anti-wearing media in special rubber and plastics

Chemistry catalyst, Biomedicine

With more than 20 years experience, E-Grind provides all sizes of Poly (Polycrystalline diamond micron powder) with high removal rate, superior surface finishing, and long using life. Our Quality Control Department keeps strict and careful control of raw material from lot to lot to ensure quality basis. All the products are tested during production and after processing, to make sure of quality consistency and quality traceability. The test report is attached to each shipment for customers reference.

Available Sizes:

0-0.15, 0-0.2, 0-0.35, 0-0.5, 0.25-0.35, 0-1, 0-2, 2-4, 3-6, 3-7, 4-8, 4-9, 6-10, 6-12

Custom-made sizes are also available upon customers' demand.
