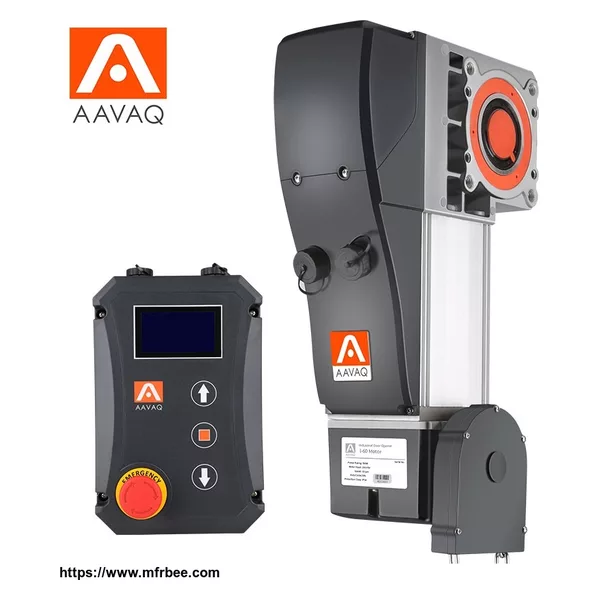

Industrial Door Opener i-60
Product Quick Detail
- FOB Price
- USD $365.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
i-60
Rated Torque: 65N.m
Maximum Door Area: 35 Square meter
Maximum Door Height: 5000mm
Power Rating: 0.5kW
Nominal Input Voltage: 220V AC
Motor: 220V DC
Duty Cycle: 20%
Rated Speed: 22rpm
Output Shaft Hole Diameter: 25.4mm
Maximum Travel: 19 rounds rotation of output shaft
Manual Release Upon Power Failure: Pull-rope Release
Operating Temperature: -20ºC to +45ºC
Noise Level: <50dB
Degree of Protection: IP54
Weight: 17.3kg
Rated Torque: 65N.m
Maximum Door Area: 35 Square meter
Maximum Door Height: 5000mm
Power Rating: 0.5kW
Nominal Input Voltage: 220V AC
Motor: 220V DC
Duty Cycle: 20%
Rated Speed: 22rpm
Output Shaft Hole Diameter: 25.4mm
Maximum Travel: 19 rounds rotation of output shaft
Manual Release Upon Power Failure: Pull-rope Release
Operating Temperature: -20ºC to +45ºC
Noise Level: <50dB
Degree of Protection: IP54
Weight: 17.3kg
