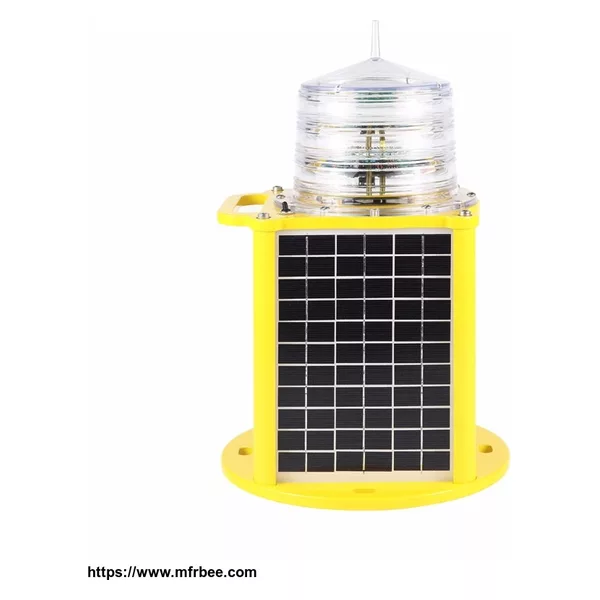

ICAO standard solar Medium Intensity aviation obstruction light

Portable Medium-intensity TypeB Solar Aviation Obstruction Light adopts illuminance but high efficient solar panels integrated design, cooperate with solar dedicated plumbic acid battery as power supply.

The battery adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low, so it can improve the battery’s service life efficiently.

Controlling circuit adopts micro-power consumption, which reduce controlling circuit ’s power consumption.

Light source adopts high efficient LED chip, which has specific of high Light intensity, low power consumption, long life and so on.

Adopts portable structure design, it's convenient for transportation, especially fit for temporary channel, airport runway.

Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock and so on.

Name	Parameter	Name	Parameter
Type	GS-MS/B	Light Source Life	＞100000 hours
Power Provider	Mono-crystalline silicon solar panel	Optional Emitting Light Colors	Red
Battery Capacity	12V14AH	Battery Type	Lead-acid battery
Solar panel voltage	5.5V	Solar panelPower Consumption	6Wx4
Power Consumption	≤15W	Vertical Divergence	＞10°
VisualDistance	＞15km	Horizontal Out-put	360°
Light Intensity	2000cd(±25%)	Overall Size(mm)	260x260x420(H)(mm)
Light Source	LED	Installation Size(mm)	D220mmxM8
Working temperature	-50℃~70℃	Wind-speed Ability	80m/s
Storage temperature	-50℃～70℃	Working mode	Flashing(20times/min)
Weight	7kg	IP Protection	IP65
Continuous Burning Timein rainy days	＞15 days (12 hours a day)	Sun Switch Illumination Threshold	300LUX±100LUX
