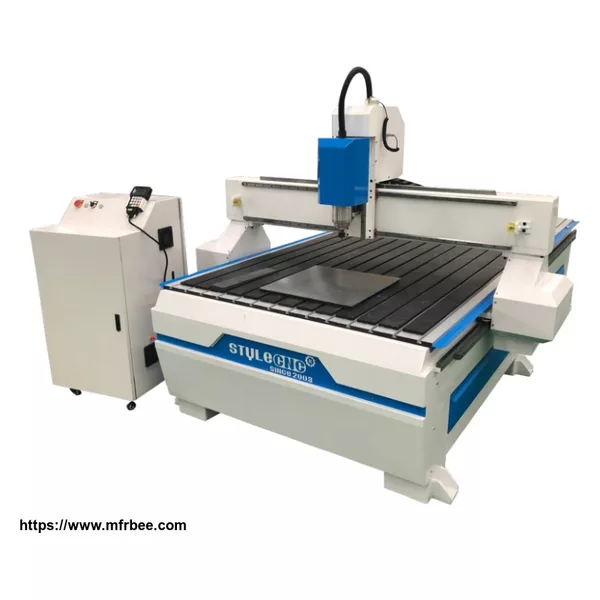

Main configuration:
#Working area:1300*2500*200mm
#3.0KW water-cooling spindle
#Taiwan Hiwin 20 rails
#X/Y axis helical rack and pinion transmission
#Z axis Taiwan TBI ball screw transmission
#RichAuto A11 DSP control system
#T-slot table with PVC
#Fuling inverter
#Leadshine M860 driver+450B motor
#Manual Lubrication
#Tool Sensor
#Cracked Artcam and JDpaint software
#France Schneider electric components
#Omron limit sensor
#Woodworking Tools (φ3.175,φ4,φ6,φ12.7)
#Tool box (All the necessary tools)
Features:
1. Big steel square tube structure, by seamless welding and hardening treatment, guarantee it to be strong, reliable and durable, with large bearing capacity and long working life.
2. High-Precision Transmission: high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.Strong and thick belt for mechanical
transmission. The rack with 1.25 helical tooth mold guarantees the quick and high precise transmission.
3. High power water-cooling spindle works with high speed, safe guarding stability for long-time operation.
4. Orderly electronic box make the machine keep stable working.
5. Automatic oil lubrication system.
6. Tool sensor, it can automatic measure the distance between tool and materials.
7. 4th axis rotary device optional for cylinder materials working.
