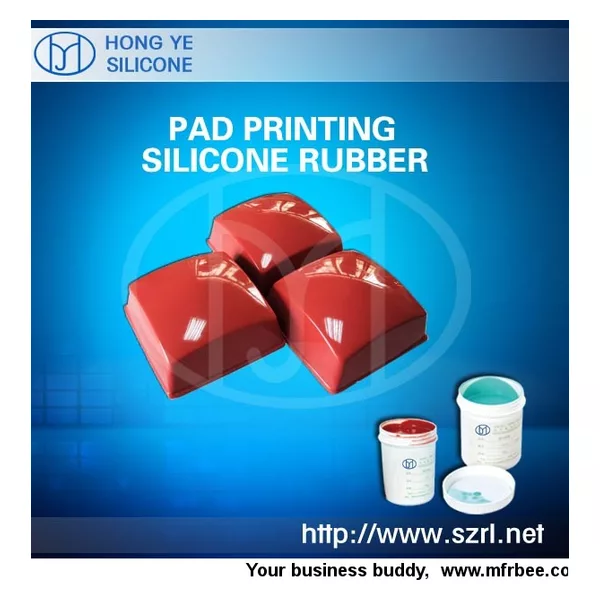

liquid pad printing silicone rubber

Place Of Origin
Guangdong China
Model Number
HY901, HY902, HY912, HY916,
Price:
FOB shenzhen USD 18/kg
Brand Name
Hong Ye Silicone Rubber
Minimum Order Quantity:
100 Kilogram
Packaging
20kg/drum, 25kg/drum and 200kg/drum
Delivery
3 Days

price: 8-20usd/kg

Specification

- Durable

- Good effects for printing

- Good quality without any impurity

- Good resilience

- Adjustable hardness

1. Applications of liquid pad printing silicone rubber

Pad printing silicone rubber is mainly use for printing irregular patterns of plastic toys, electroplating toys and trade makers . Pad printing silicone rubber as a carrier which transfer patterns on the steel plate to the toys products surface.

2. Features of liquid pad printing silicone rubber

a. resistance to deformation, high-temperature

b. high printing times

c. good aging resistance

d. exceptional elasticity

e. great printing effect

3. Operation Instructions of liquid pad printing silicone rubber

Pad printing silicone rubber is two-component silicone, part A is liquid silicon rubber, part B is catalyst. The usual mixture of silicone rubber and catalyst is 100: 2 or 100: 3. E.g. we take 100g of liquid silicon rubber and 2g-3g catalyst, mix them and pour it to your mold. A fter 2-4 hours, you will get a Pad printing silicone rubber.

4. Technical datasheet of liquid pad printing silicone rubber

Model Appearance Viscosity (cs) Hardness (Ao) Tensile Strength (kgf/c) Tear Strength (kgf/cm) Shrinkage (%) Elongation (%) Mixing Ratio(%) Operating Time(H) Curing Time(H)
HY 918 White 18000~20000 22~24 ≥32 ≥20 ≤0.3 ≥500 2~3 0.5 2~4
Model Color Mixing ratio (%) Pot life (mins) Demould time (hrs) Hardness(A0) Tensile-stength (N/m2) Tear-strength (N/mm) Viscosity (cps) Elongation (%)
HY 928 red 9:1 30 4±1 30 5.5 27 17000-20000 500

5. FAQ of liquid pad printing silicone rubber

Why the silicon pad is non-durable?

This problem is caused not by the liquid silicon rubber itself, but in the process of filtering, the filtering handled not properly and impurities are not all filtered out; or in the process of packing as containers not cleaned thoroughly.

As the silicon oil will break the molecular chain of the silicon rubber. More silicon oil added, softer the pad printing will be, meanwhile nondurable and easy ageing it will also turn to be.

Some customers do not know well about the performance of silicon rubber. Actually, the durability of printing pad is closely related to the size of printing pattern. Some factories do not want to take the trouble to change the printing pad. While in fact, for large pattern, large silicone pads should be used, otherwise, use small one.(Generally, the ratio of the silicone pad to printing pattern is 3:1)

6.trade information

Place of Origin Guangdong China

Brand Name Hong Ye Silicone Rubber

Model Number HY901, HY902, HY912, HY916, pad printing silicone rubber

Payment & Shipping Terms:

Minimum Order Quantity: 100 Kilogram

Price: FOB shenzhen USD 18/kg

Packaging Details: 20kg/drum, 25kg/drum and 200kg/drum

Delivery Time: within 3 days after payment confirmed in our bank

Payment Terms: L/C at sight, T/T, Western Union, Paypal

Supply Ability: 8 Ton per Day

Certifications:RoHS, MSDS, SGS, ISO9001:2000

FOB CFR CIF DDP DAP EXW

Any questions , please contact Ms Monica :

Tel: +86-0755-89948006

Skype: monicasilicone

Email:monicasilicone@gmail.com

Wechat ID: ete394
