Machine model | FMY600 |
OD Size range | 300-600 mm |
PTFE Products | Extruded Rod |
Process | Vertical M/c |
Power KW | 20 |
Tolerance | Depands |
| |
Length | 300mm |
Production Capacity Kg/H | 10 |
Electricity Consumption /H | 32 |
Weight of the Machine | 8300 |
High of the Machine mm | 1200 |

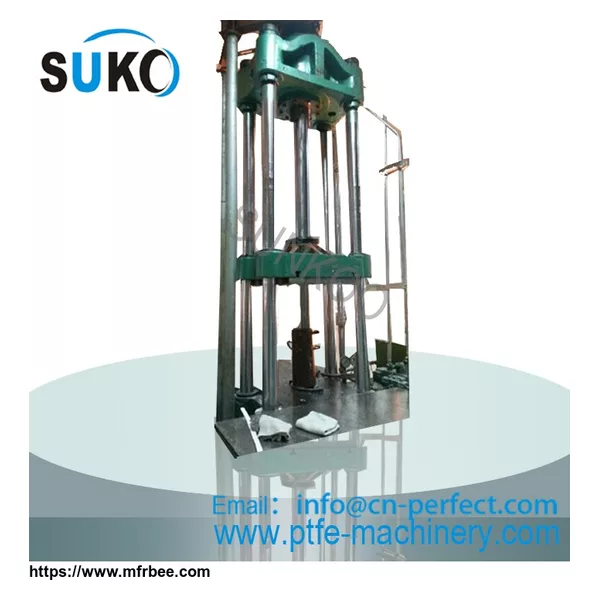

RAM Extruder For PTFE Rod(Φ300-600mm)
This PTFE extruder is able to extrude rod which dia from 300mm to 600mm. The automatic
productionline is controlled by computer, which is really easy to operate. Meanwhile, the
plastic extrusion machine is advance designed, high output, low energy consumption, long-life,
and also our professional engineer is available to offer overseas after sale service. We can solve
various problems to improve the equipment efficiency for you.
Ram extrusion machine for Teflon rod
The China vertical RAM Extruder is designed with 2 pressure plates, so the ream is affected via a
slid pressure plate. The China rod ram extruder is equipped with two hydraulic cylinders.
The main cylinder serves to move the ram; the additional cylinder serves for retracting the
mandrel. Base plate and dosing tray are water-cooled.
The PTFE powder is feed into the rotating hopper via an exact working powder dosing device,
controlled by a level indicator. By means of a rotating blade the powder is wiped uniformly into
the cavity of the mould.
Range of diameter PTFE Extrusion 300 to 600 mm, Heating zones 4-6 zones
The complete electrical control is laterally fastened at rod ram extrusion. With a PC touch screen
panel all speeds and temperatures can be programmed. Electronics contain the necessary
automatic controllers for speeds and temperatures. Five temperature regulators are contained in
the plant, four for the extruding pipe and one automatic controller for a mandrel heating element.
The maximum output speed of PTFE extrusion depends on: physical property , like Specific Gravity
and Elongation, outside of PTFE rod diameters and PTFE product heating length.
PTFE Equipment Warranty: according to our standard terms: 12months
Email:export@sukoptfe.com
Web: http://www.ptfe-machinery.com/
http://www.sukoptfe.com/
HOT TAGS:TEFLON PTFEROD;TEFLON PTFE TUBE,TEFLON PTFE EXTRUSION
Place of Origin: Jiangsu, China (Mainland) Application: low friction bearings, bushes, rollers and pulleys Type: Extruded Teflon rod Tolerance: -0.1~+0.1mm Packaging and shipping details: 1. Outside package: standard export wooden cases; 2. Inner package: stretch film; 3. ...
