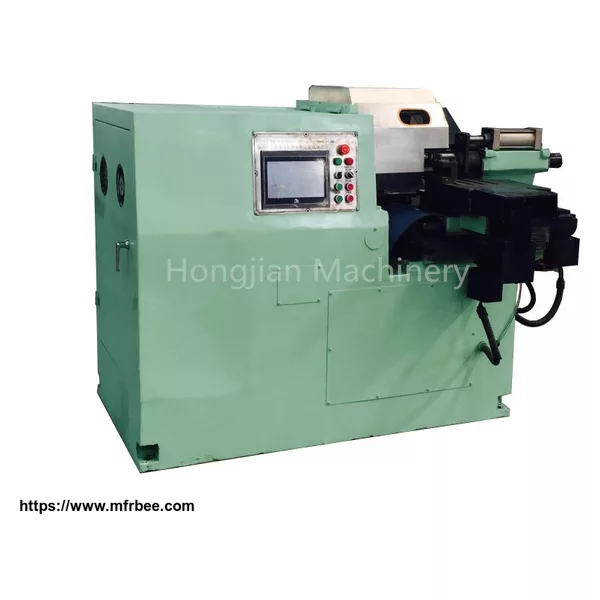

Gravure Cylinder Flange Making CNC Flange Lathe Machine

HJ-CDJ Core-Double Tool Post CNC Lathe Machine is a new generation of CNC lathe for gravure cylinder making. The machine uses four axis servo control system, the integration of casting lathe bed with rectangular guide way, guarantying the enough strength, stiffness and good shock resistance. The machine structure is compact.

FEATURES:

1. The spindle drive system adopts frequency control of motor speed, it automatically adjusts spindle speed within the scope of 120-700 r/min according to the diameter of work piece size

2. The tailstock adopts simple and reliable air clamper device

3. It is high efficiency. One time clamping can finish the processing of the inner hole and outer circle of the work piece.

4. Simple operations and pleasant interface

The Knife largest trip

The Outside Knife largest trip of horizontal: 160mm

The Outside Knife largest trip of vertical: 220mm

The Inside Knife largest trip of horizontal: 220mm

The Inside Knife largest trip of vertical: 220mm

The Other parameters of machine

The top taper of hole ahead the main axis: Morse 6

Spindle speed range: 120—700r/min

No level machinery velocity modulation

Tailstock

The Diameter of the Set tube for the top taper: 70 mm

The largest trip of the Set tube for the top taper: 125mm

The top taper: Morse 5

Transmission set

Main Motor rated power: 12.5KW

Main Motor speed: 960 r/min

The transmission ratio Rope Wheel: 2.1: 1

Weight: 2800kg

Dimension L*W*H: 2000*1800*1600 mm
