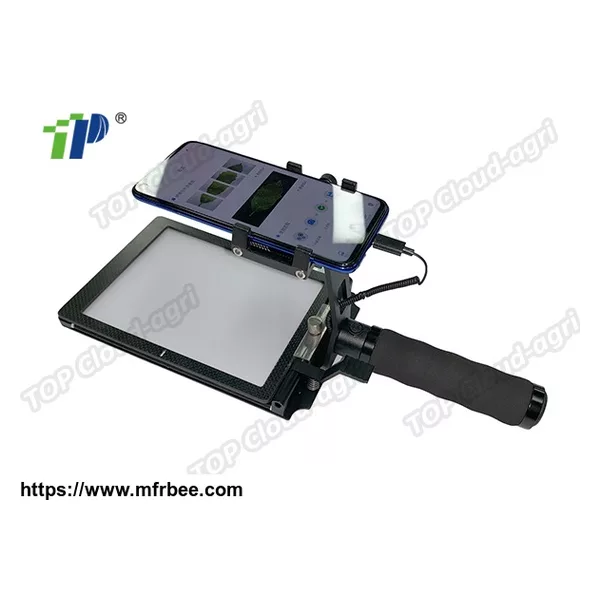

Living Leaf Area Meter
Product Quick Detail
- FOB Price
- USD $2,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- in carton
- Delivery
- 15 Days
Specifications
Characteristics
64G Android phone with the APP, wide-angle shooting Single blade analysis, multiple collection of longer blades Measuring various parameters of the blade Export excel form of multiple sets
of data and pictures No damage to blade when measurement Better adapt to the thickness of different leaves
Technical parameters
|
Overall size
|
369*145*150mm (L*W*H)
|
|
Measurement accuracy
|
Single shooting： ±2%;
Stitching shooting：length and width ± 2%, the rest of the data is ± 5% (the result of blade stitching with a width that is too narrow (< 5mm) will have errors) |
|
Measurement range
|
Single shooting: width 0-140mm, length 0-105mm
Stitching shooting：width 0-140mm, length 0-∞mm |
|
Product weight
|
0.9 kg
|
|
Software system
|
Android8.1
|
|
Phone size
|
6.26 inches
|
|
Rear camera
|
Rear four cameras：48 million (color, F1.8 aperture) + 8 million (super wide-angle) + 2 million (macro) + 2 million pixels (depth)
|
|
Resolution
|
1920x1080 pixels
|
|
RAM
|
6GB+128GB
|
|
CPU
|
HUAWEI Kirin 810 (Kirin 810) eight core
|
2. Blade length measurement accuracy: single acquisition measurement accuracy is ±1%, splicing accuracy can be controlled within ±2%
3. Blade width measurement range: 0-150 mm
4. Blade width measurement accuracy: single acquisition measurement accuracy is ±1%, splicing accuracy can be controlled within ±2% 5. Aspect ratio measurement range: 0.00-10.00 6. Measurement
accuracy of aspect ratio: single acquisition measurement accuracy is ±2%, splicing accuracy can be controlled within ±2% 7. Perimeter measurement range: 0-1,000 mm 8. Perimeter measurement
accuracy: single acquisition measurement accuracy is ±2%, splicing accuracy can be controlled within ±3% 9. Area measurement range: 0-1,000,000 mm2 10. Area measurement accuracy: single
acquisition measurement accuracy is ±1%, splicing accuracy can be controlled within ±2% 11. Form factor range: 0.00-1.00 12. Form factor measurement accuracy: single acquisition measurement
accuracy is ±2%, splicing accuracy can be controlled within ±5% 13. Shape factor range: 0.00-1.00 14. Shape factor measurement accuracy: single acquisition measurement accuracy is ±2%, splicing
accuracy can be controlled within ±5%
