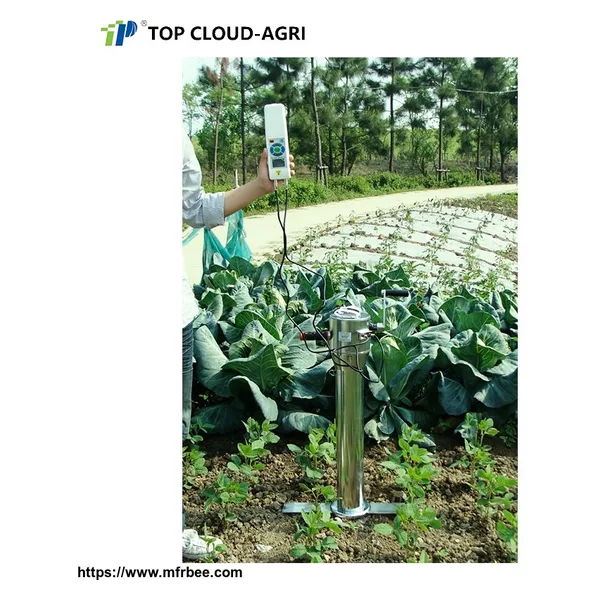

Soil Compaction Meter
Product Quick Detail
- FOB Price
- USD $800.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- in carton
- Delivery
- 15 Days
Specifications
Characteristic:
1. Handset:
* Small and exquisite, easy to carry and LCD display;
* Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
* Both AC and DC available, internal lithium battery: 4v 1500mAh, with function: charging protection, low voltage prompt. Also
can be placed for a long time to record location;
* Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
* Data can be read on handset and also import to PC.
* Power-off memory function: data already saved in SD card won’t lose when lose power.
* Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
* Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
* Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
* Both AC and DC available, internal lithium battery: 4v 1500mAh, with function: charging protection, low voltage prompt. Also
can be placed for a long time to record location;
* Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
* Data can be read on handset and also import to PC.
* Power-off memory function: data already saved in SD card won’t lose when lose power.
* Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
* Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
2. Software：
* Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function. * Coloring the overrun area function which is visual display. * Save the data in EXCEL format as a copy.
* Be able to view period of parameter or graph, and can be printed. * All curvilinear coordinates can be set and move, which make analysis easier.
Handset parameters
* Storage capacity: almost up to 30,000 groups in handset, and equipped with 4G Micro SD. * Data-collection interval: 5min~99hour * Working power supply: 8.4V lithium battery * Working
current: stand-by power consumption 10mA, working power consumption according to the configuration.
|
Model
|
Function
|
|
TJSD750
|
General type, display soil compaction(KPa, kg/c㎡, N/c㎡) directly, with data saving function
|
|
Range
|
0~10,000KPa; 0~100kg/c㎡; 0~1,000N/c㎡ (switchable)
|
|
Depth
|
0~375mm(measuring rod is 400mm)
|
|
Accuracy
|
±0.5‰ FS
|
|
Position accuracy
|
Three decimal ±0.05(≤50m)
|
