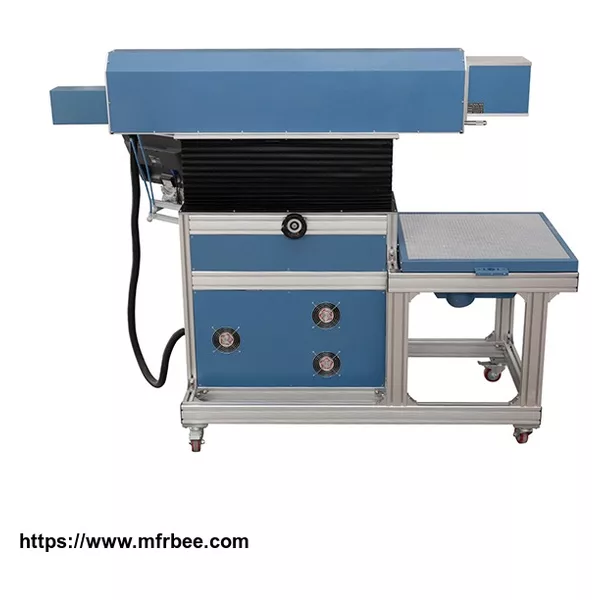

Type:FST-80/100/130
Power:80w/100w/130w
Beam quality:M2<2
Writing speed:≤7000mm/s
Writing range:100mm×100mm Other optional
Power supply:AC220V/50Hz
Type | FST-80/100/130 |
Power | 80w/100w/130w |
Laser Wavelength | 1064nm |
Beam Quality | M2<2 |
Output Stability | 0.02 |
Pulse Width | 90-120ns |
Pulse Repeat Frequency | 20-200Hz |
Single Pulse Energy | 1mJ |
Machine dimensions | 500mm×500mm×1800mm |
Mini Line Width | 0.02mm |
Mini Character | 0.5mm |
Writing Speed | ≤7000mm/s |
Writing range | 100mm×100mm Other optional |
Cooling Way | water cooling |
Power Supply | AC220V/50Hz |
Whole Machine Power | 500w |
Temperature of Operation Environment | 15℃~35℃ |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <400W |
Communication Interface | USB |
Machine Dimension/after package | 650mm*210mm*550mm/880*420*700mm |
Net Weight/gross weight | 30KG/53kgs |
Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |
Pre-sale service:
Before the machine is shipped,we will complete the installation of the machine and commission it to the best working condition. You can use it directly after receiving the machine.If necessary,we have professional after-sales to provide you with machine support.
After-sale Service:
The whole machine warranty for one year(except the laser tube and mirrors lens).Any questions,24 hours online professional advice available.
1. How can I choose the most suitable machine?
Please tell us three questions, our customer service staff will recommend the most suitable product for you.
1) Which material is mainly used for? Cutting, engraving or marking?
2) What is the max thickness of the cut?
3) How big working area you need?
2. How long can deliver the machine?
Common machine can be delivered within 3~7 days. Custom-made machine needs 12~14 days.
3. Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support to our customers.
Our technicians can assist you to install the machine and give you free training after you receive machine.
