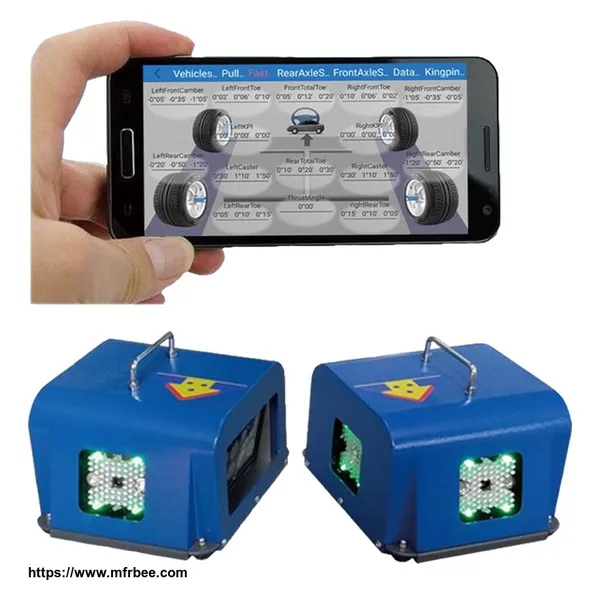

The Portable 3D Wheel Aligner might be the smallest wheel alignment system in the world. Without the long beam and heavy cabinet that most traditional wheel aligners equipped with, the whole set of the Portable 3D Wheel Aligner occupies no more than 1 cubic meter space. The light weight and small size allow the equipment to be moved very easily to any place, so the outdoor work and DIY repair both become possible this portable 3D wheel aligner. The wireless WIFI can connect the small cabinet to any LCD monitor with android system, even directly connect to your smart phone.
Features:
Standard Accessary:
4 pieces of targets, 4 pieces of 24”clamps,32”LCD monitor with Android system, turntable, 2 pieces of wedge, steering wheel lock, foot brake depresser, wireless keyboard and mouse.
Optional Accessary:
Tablet PC, WiFi wireless printer.
Technical Data
Measuring Item | Accuracy | Measuring Range |
Toe | ±0.01°or ±0.01 mm | ±20° |
Camber | ±0.01° | ±30° |
Caster | ±0.02° | ±30° |
Set Back | ±0.01° | ±20° |
Thruste Angle | ±0.01° | ±20° |
Wheel Track | 1200-3000 | |
Wheel Base | 2000-5000 |
1.Windows 7 operating system, newest DK-42 software. 2.Automatic adjustment for height of camera beam, automaic tracking the target plates. 3.Automatic check for height of car lift, automatic calibrate the camera. 4.With black-box functions, all files can be saved forture ...
wheel alignment machine for sale dk-v3dIII 1.Windows7operatingsystem,newest DK-42 software,include all functions from old software,with self-owned intellectual property. 2.Automatic adjustment for height of camera beam , automatic tracking the target plates. 3.Automatic check ...
